Purchase MAX4522, In-stock MAX4522 From SeekIC.
MFG:MAXIM D/C:06+
Part Number: MAX4522
MFG: MAXIM
D/C: 06+
Description: The MAX4521/MAX4522/MAX4523 are quad, low-voltage,single-pole/single-throw (SPST) analog switches.On-resistance (100...
- Table of contents:
MAX4522
-
Suppliers
DataSheet
General Description
MAX4522 General Description
The MAX4521/MAX4522/MAX4523 are quad, low-voltage,single-pole/single-throw (SPST) analog switches.On-resistance (100½ max) is matched between switches to 4½ max, and is flat (12½ max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C and 10nA at +85°C.
The MAX4521 has four normally closed (NC) switches,and the MAX4522 has four normally open (NO) switches.The MAX4523 has two NC switches and two NO switches.
MAX4522 Maximum Ratings
Voltages Referenced to GND
V+......................................................................-0.3V to +13.0V
V- ......................................................................-13.0V to +0.3V
V+ to V- ............................................................-0.3V to +13.0V
All Other Pins (Note 1) .......................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current into Any Terminal...........................±10mA
Peak Current into Any Terminal
(pulsed at 1ms,10% duty cycle)....................................±20mA
ESD per Method 3015.7 ...............................................>2000V
Continuous Power Dissipation (TA = +70°C) (Note 2)
Plastic DIP (derate 10.53mW/°C above +70°C) .........842mW
Narrow SO (derate 8.70mW/°C above +70°C) ...........696mW
QSOP (derate 9.52mW/°C above +70°C)....................762mW
CERDIP (derate 10.00mW/°C above +70°C)...............800mW
Operating Temperature Ranges
MAX452_C_E .....................................................0°C to +70°C
MAX452_E_E ..................................................-40°C to +85°C
MAX452_MJE ................................................-55°C to +125°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10 sec) .........................+300°C
V+......................................................................-0.3V to +13.0V
V- ......................................................................-13.0V to +0.3V
V+ to V- ............................................................-0.3V to +13.0V
All Other Pins (Note 1) .......................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current into Any Terminal...........................±10mA
Peak Current into Any Terminal
(pulsed at 1ms,10% duty cycle)....................................±20mA
ESD per Method 3015.7 ...............................................>2000V
Continuous Power Dissipation (TA = +70°C) (Note 2)
Plastic DIP (derate 10.53mW/°C above +70°C) .........842mW
Narrow SO (derate 8.70mW/°C above +70°C) ...........696mW
QSOP (derate 9.52mW/°C above +70°C)....................762mW
CERDIP (derate 10.00mW/°C above +70°C)...............800mW
Operating Temperature Ranges
MAX452_C_E .....................................................0°C to +70°C
MAX452_E_E ..................................................-40°C to +85°C
MAX452_MJE ................................................-55°C to +125°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10 sec) .........................+300°C
MAX4522 Features
+2V to +12V Single Supply
±2V to ±6V Dual Supplies
100½ Signal Paths with ±5V Supplies
Low Power Consumption, <1W
4 Separately Controlled SPST Switches
Rail-to-Rail Signal Handling
Pin Compatible with Industry-Standard DG211/DG212/DG213
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputs with ±5V or Single +5V Supply
±2V to ±6V Dual Supplies
100½ Signal Paths with ±5V Supplies
Low Power Consumption, <1W
4 Separately Controlled SPST Switches
Rail-to-Rail Signal Handling
Pin Compatible with Industry-Standard DG211/DG212/DG213
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputs with ±5V or Single +5V Supply
MAX4522 Typical Application
Battery-Operated Equipment
Data Acquisition
Test Equipment
Avionics
Audio Signal Routing
Networking
Data Acquisition
Test Equipment
Avionics
Audio Signal Routing
Networking

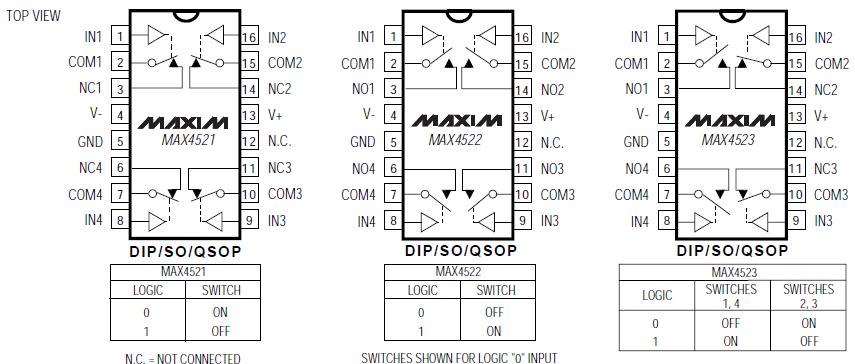

MAX4522 Connection Diagram
MAX4522
PDF/DataSheet Download
- Datasheet: MAX4522
- File Size: 159337 KB
- Manufacturer: Maixm
- Click here to Download
