Part Number: MAX4541
Description: The MAX4541MAX4544 are precision, dual analog switches designed to oper...
- Table of contents:
MAX4541
-
Suppliers
DataSheet
General Description
MAX4541 General Description
The MAX4541MAX4544 are precision, dual analog switches designed to operate from a single +2.7V to +12V supply. Low power consumption (5µW) makes these parts ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max).
When powered from a +5V supply, the MAX4541 MAX4544 offer 2Ω max matching between channels, 60Ω max on-resistance (RON), and 6Ω max RON flatness.
These switches also offer 5pC max charge injection and a minimum of 2000V ESD protection per Method 3015.7.
The MAX4541/MAX4542/MAX4543 are dual single-pole/single-throw (SPST) devices and the MAX4544 is a single pole/double-throw (SPDT) device. The MAX4541 has two normally open (NO) switches and the MAX4542 has two
normally closed (NC) switches. The MAX4543 has one NO and one NC switch and can be used as an SPDT, while
the MAX4544 is an SPDT. The MAX4541/MAX4542/MAX4543 are available in tiny SOT23-8 and QFN-8 packages, and the MAX4544 is available in a SOT23-6 package.
MAX4541 Maximum Ratings
Voltage Referenced to GND
V+.......................................................................-0.3V to +13V
IN_, COM_, NC_, NO_ (Note 1)..................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal)................................±10mA
Peak Current, COM_, NO_, NC_
(pulsed at 1ms, 10% duty cycle max)............................±20mA
ESD per Method 3015.7.................................................>2000V
Continuous Power Dissipation
SOT23-6 (derate 7.1mW/°C above +70°C)..................571mW
SOT23-8 (derate 5.3mW/°C above +70°C)..................421mW
QFN (derate 24.4mW/°C above +70°C) ....................1951mW
MAX (derate 4.10mW/°C above +70°C).....................330mW
Narrow SO (derate 5.88mW/°C above +70°C).............471mW
Plastic DIP (derate 9.09mW/°C above +70°C) ............727mW
Operating Temperature Ranges
MAX454_C_ _ ....................................................0°C to +70°C
MAX454_E_ _..................................................-40°C to +85°C
Storage Temperature Range.........................-65°C to +150°C
Lead Temperature (soldering, 10s)...............................+300°C
MAX4541 Features
Low RON: 60Ω max (33Ω typ)
RON Matching Between Channels: 2Ω max
RON Flatness: 6Ω max
Guaranteed Charge Injection: 5pC max
+2.7V to +12V Single-Supply Operation
Low Power Consumption: <5µW
Low Leakage Current Over Temperature: 10nA max at +85°C
Fast Switching: tON = 35ns, tOFF = 25ns
Guaranteed Break-Before-Make (MAX4543/MAX4544 only)
TTL/CMOS-Logic Compatible
Pin Compatible with MAX323/MAX324/MAX325
MAX4541/42/43 Available in SOT23-8
MAX4544 Available in SOT23-6
RON Matching Between Channels: 2Ω max
RON Flatness: 6Ω max
Guaranteed Charge Injection: 5pC max
+2.7V to +12V Single-Supply Operation
Low Power Consumption: <5µW
Low Leakage Current Over Temperature: 10nA max at +85°C
Fast Switching: tON = 35ns, tOFF = 25ns
Guaranteed Break-Before-Make (MAX4543/MAX4544 only)
TTL/CMOS-Logic Compatible
Pin Compatible with MAX323/MAX324/MAX325
MAX4541/42/43 Available in SOT23-8
MAX4544 Available in SOT23-6
MAX4541 Typical Application
Battery-Operated Systems
Sample-and-Hold Circuits
Heads-Up Displays
Guidance and Control
Systems
Audio and Video
Switching
Military Radios
Test Equipment
Communications Systems
+3V/+5V DACs and ADCs
PBX, PABX
Cell Phones
Ultrasound
Pagers
Sample-and-Hold Circuits
Heads-Up Displays
Guidance and Control
Systems
Audio and Video
Switching
Military Radios
Test Equipment
Communications Systems
+3V/+5V DACs and ADCs
PBX, PABX
Cell Phones
Ultrasound
Pagers

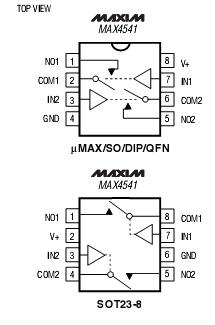

MAX4541 Connection Diagram
MAX4541
