Purchase MAX4547, In-stock MAX4547 From SeekIC.
Part Number: MAX4547
Description: The MAX4545/MAX4546/MAX4547 are low-voltage T-switches designed for switching RF and video signa...
- Table of contents:
MAX4547
-
Suppliers
DataSheet
General Description
MAX4547 General Description
The MAX4545/MAX4546/MAX4547 are low-voltage T-switches designed for switching RF and video signals from DC to 300MHz in 50Ωand 75Ω systems. The MAX4545 contains four normally open single-pole/single- throw (SPST) switches. The MAX4546 contains two dual SPST switches (one normally open, one normally closed.) The MAX4547 contains two single-pole/double-throw (SPDT) switches.
Each switch is constructed in a "T" configuration, ensuring excellent high-frequency off isolation and crosstalk of -80dB at 10MHz. They can handle Rail-to-Rail®analog sig- nals in either direction. On-resistance (20Ωmax) is matched between switches to 1Ωmax and is flat (0.5Ωmax) over the specified signal range, using ±5V supplies.The off leakage current is less than 5nA at +25°C and 50nA at +85°C.
These CMOS switches can operate with dual power sup- plies ranging from ±2.7V to ±6V or a single supply between +2.7V and +12V. All digital inputs have 0.8V/2.4V logic thresholds, ensuring both TTL- and CMOS-logic com- patibility when using ±5V or a single +5V supply.
MAX4547 Maximum Ratings
V+...........................................................................-0.3V, +13.0V
V-............................................................................-13.0V, +0.3V
V+ to V-..................................................................-0.3V, +13.0V
All Other Pins (Note 1)...........................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current into Any Terminal..............................±25mA
Peak Current into Any Terminal
(pulsed at 1ms, 10% duty cycle).......................................±50mA
ESD per Method 3015.7...................................................>2000V
Continuous Power Dissipation (TA= +70°C) (Note 2)
16-Pin Plastic DIP
(derate 10.53mW/°C above +70°C)................................842mW
16-Pin Narrow SO
(derate 8.70mW/°C above +70°C).................................696mW
16-Pin QSOP (derate 8.3mW/°C above +70°C)...............667mW
20-Pin Plastic DIP (derate 8.0mW/°C above +70°C)........640mW
20-Pin Wide SO (derate 10.00mW/°C above +70°C).......800mW
20-Pin SSOP (derate 8.0mW/°C above +70°C)................640mW
Operating Temperature Ranges
MAX454_C_ E.........................................................0°C to +70°C
MAX454_E_ E......................................................-40°C to +85°C
Storage Temperature Range.............................-65°C to +150°C
Lead Temperature (soldering, 10sec)..............................+300°C
MAX4547 Features
Low 50ΩInsertion Loss: -1dB at 100MHz
High 50ΩOff Isolation: -80dB at 10MHz
Low 50ΩCrosstalk: -80dB at 10MHz
DC to 300MHz -3dB Signal Bandwidth
20ΩSignal Paths with ±5V Supplies
1ΩSignal-Path Matching with ±5V Supplies
0.5ΩSignal-Path Flatness with ±5V Supplies
±2.7V to ±6V Dual Supplies
+2.7V to +12V Single Supply
Low Power Consumption: <1µW
Rail-to-Rail Bidirectional Signal Handling
Pin Compatible with Industry-Standard DG540,
DG542, DG643
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputs
with Single +5V or ±5V
High 50ΩOff Isolation: -80dB at 10MHz
Low 50ΩCrosstalk: -80dB at 10MHz
DC to 300MHz -3dB Signal Bandwidth
20ΩSignal Paths with ±5V Supplies
1ΩSignal-Path Matching with ±5V Supplies
0.5ΩSignal-Path Flatness with ±5V Supplies
±2.7V to ±6V Dual Supplies
+2.7V to +12V Single Supply
Low Power Consumption: <1µW
Rail-to-Rail Bidirectional Signal Handling
Pin Compatible with Industry-Standard DG540,
DG542, DG643
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputs
with Single +5V or ±5V
MAX4547 Typical Application
RF Switching
Video Signal Routing
High-Speed Data Acquisition
Test Equipment
ATE Equipment
Networking
Video Signal Routing
High-Speed Data Acquisition
Test Equipment
ATE Equipment
Networking

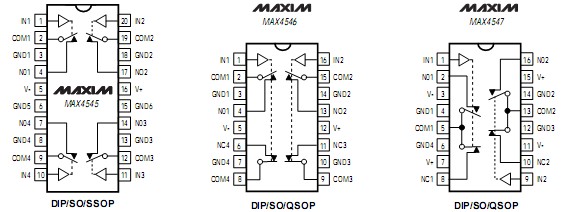

MAX4547 Connection Diagram
MAX4547
