Part Number: MAX4564
Description: The MAX4564 is a low-voltage, dual-supply, singlepole/ double-throw (SPDT) analog switch designed to o...
- Table of contents:
MAX4564
-
Suppliers
DataSheet
General Description
MAX4564 General Description
The MAX4564 is a low-voltage, dual-supply, singlepole/ double-throw (SPDT) analog switch designed to operate from dual ±1.8V to ±6V or single +1.8V to +12V supplies. The low on-resistance (RON = 40 at ±5V) and low power consumption (5W) make this part ideal for audio, video, and battery-powered applications. This switch offers low leakage currents (1nA
max) and fast switching speeds (tON = 60ns and tOFF = 40ns at ±5V, max).
The MAX4564 is available in 8-pin SOT23 and MAX packages.
MAX4564 Maximum Ratings
V+ ..........................................................................-0.3V to +13V
V- ...........................................................................-13V to +0.3V
V+ to V- ......................................................................-0.3V to +13V
EN, IN, COM, NC, NO (Note 1) .................. (V- - 0.3V) to (V+ + 0.3V)
Continuous Current (any terminal)...................................... ±20mA
Peak Current, COM, NC, NO
(pulsed at 1ms, 10% duty cycle)......................................... ±30mA
ESD per Method 3015.7.......................................................... >2kV
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT23 (derate 7.1mW/°C above +70°C) ................571mW
8-Pin MAX (derate 4.10mW/°C above +70°C) ...............330mW
Operating Temperature Range
MAX4564E_A ......................................................-40°C to +85°C
Junction Temperature ......................................................+150°C
Storage Temperature Range ............................6.5°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
V- ...........................................................................-13V to +0.3V
V+ to V- ......................................................................-0.3V to +13V
EN, IN, COM, NC, NO (Note 1) .................. (V- - 0.3V) to (V+ + 0.3V)
Continuous Current (any terminal)...................................... ±20mA
Peak Current, COM, NC, NO
(pulsed at 1ms, 10% duty cycle)......................................... ±30mA
ESD per Method 3015.7.......................................................... >2kV
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT23 (derate 7.1mW/°C above +70°C) ................571mW
8-Pin MAX (derate 4.10mW/°C above +70°C) ...............330mW
Operating Temperature Range
MAX4564E_A ......................................................-40°C to +85°C
Junction Temperature ......................................................+150°C
Storage Temperature Range ............................6.5°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
MAX4564 Features
* 60 max (40, typ) On-Resistance (RON)
* 3 max (0.75, typ) RON Matching Between Channels
* 10 (max) RON Flatness
* Low Charge Injection: 3pC (typ)
* Low ±1nA Leakage Current at +25°C
* Fast Switching
tON = 60ns (max)
tOFF = 40ns (max)
* Guaranteed Break-Before-Make Switching
* TTL/CMOS-Logic Compatible
* Low Crosstalk: -72dB (1MHz)
* High Off-Isolation: -77dB (1MHz)
* Bandwidth -3dB: >450MHz (typ)
* Available in an 8-Pin SOT23 Package
* 3 max (0.75, typ) RON Matching Between Channels
* 10 (max) RON Flatness
* Low Charge Injection: 3pC (typ)
* Low ±1nA Leakage Current at +25°C
* Fast Switching
tON = 60ns (max)
tOFF = 40ns (max)
* Guaranteed Break-Before-Make Switching
* TTL/CMOS-Logic Compatible
* Low Crosstalk: -72dB (1MHz)
* High Off-Isolation: -77dB (1MHz)
* Bandwidth -3dB: >450MHz (typ)
* Available in an 8-Pin SOT23 Package
MAX4564 Typical Application
Battery-Operated Systems
Audio and Video Switching
Test Equipment
Communications Circuits
Sample-and-Hold Circuits
Communications Systems
Audio and Video Switching
Test Equipment
Communications Circuits
Sample-and-Hold Circuits
Communications Systems

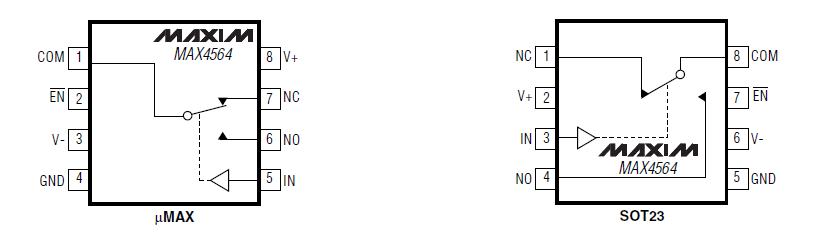

MAX4564 Connection Diagram
MAX4564
PDF/DataSheet Download
- Datasheet: MAX4564
- File Size: 250962 KB
- Manufacturer: Maxim
- Click here to Download
