General Description
MAX4567 General Description
The MAX4565/MAX4566/MAX4567 are low-voltageT-switches designed for switching RF and video signalsfrom DC to 350MHz in 50 and 75 systems. TheMAX4565 contains four normally open single-pole/singlethrow(SPST) switches. The MAX4566 contains two dualSPST switches (one normally open, one normally closed.)The MAX4567 contains two single-pole/double-throw(SPDT) switches.
Each switch is constructed in a "T" configuration, ensuringexcellent high-frequency off isolation and crosstalk of-83dB at 10MHz. They can handle Rail-to-Rail® analog signalsin either direction. On-resistance (60 max) ismatched between switches to 2.5 max and is flat (2max) over the specified signal range, using ±5V supplies.The off leakage current is less than 5nA at +25 and50nA at +85.
These CMOS switches can operate with dual power suppliesranging from ±2.7V to ±6V or a single supplybetween +2.7V and +12V. All digital inputs have 0.8V/2.4Vlogic thresholds, ensuring both TTL- and CMOS-logic compatibilitywhen using ±5V or a single +5V supply.
MAX4567 Maximum Ratings
(Voltages Referenced to GND)
V+...........................................................................-0.3V, +13.0V
V- ...........................................................................-13.0V, +0.3V
V+ to V-..................................................................-0.3V, +13.0V
All Other Pins (Note 1) ..........................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current into Any Terminal..............................±25mA
Peak Current into Any Terminal
(pulsed at 1ms, 10% duty cycle)......................................±50mA
ESD per Method 3015.7 ..................................................>2000V
Continuous Power Dissipation (TA = +70) (Note 2)
16-Pin Plastic DIP
(derate 10.53mW/ above +70)..................................842mW
16-Pin Narrow SO
(derate 8.70mW/ above +70)....................................696mW
16-Pin QSOP (derate 8.3mW/ above +70)................ 667mW
20-Pin Plastic DIP (derate 8.0mW/ above +70) ........640mW
20-Pin Wide SO (derate 10.00mW/ above +70) ...... 800mW
20-Pin SSOP (derate 8.0mW/ above +70) ............... 640mW
Operating Temperature Ranges
MAX456_C_ E ..........................................................0 to +70
MAX456_E_ E .......................................................-40 to +85
Storage Temperature Range ............................. -65 to +150
Lead Temperature (soldering, 10sec) ..............................+300
V+...........................................................................-0.3V, +13.0V
V- ...........................................................................-13.0V, +0.3V
V+ to V-..................................................................-0.3V, +13.0V
All Other Pins (Note 1) ..........................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current into Any Terminal..............................±25mA
Peak Current into Any Terminal
(pulsed at 1ms, 10% duty cycle)......................................±50mA
ESD per Method 3015.7 ..................................................>2000V
Continuous Power Dissipation (TA = +70) (Note 2)
16-Pin Plastic DIP
(derate 10.53mW/ above +70)..................................842mW
16-Pin Narrow SO
(derate 8.70mW/ above +70)....................................696mW
16-Pin QSOP (derate 8.3mW/ above +70)................ 667mW
20-Pin Plastic DIP (derate 8.0mW/ above +70) ........640mW
20-Pin Wide SO (derate 10.00mW/ above +70) ...... 800mW
20-Pin SSOP (derate 8.0mW/ above +70) ............... 640mW
Operating Temperature Ranges
MAX456_C_ E ..........................................................0 to +70
MAX456_E_ E .......................................................-40 to +85
Storage Temperature Range ............................. -65 to +150
Lead Temperature (soldering, 10sec) ..............................+300
MAX4567 Features
High 50Off Isolation: -83dB at 10MHz
Low 50 Crosstalk: -87dB at 10MHz
DC to 350MHz -3dB Signal Bandwidth
60 Signal Paths with ±5V Supplies
2.5Signal-Path Matching with ±5V Supplies
2 Signal-Path Flatness with ±5V Supplies
Low 50 Insertion Loss: 2.5dB at 100MHz
±2.7V to ±6V Dual Supplies+2.7V to +12V Single Supply
Low Power Consumption: <1µW
Rail-to-Rail Bidirectional Signal Handling
Pin Compatible with Industry-Standard DG540,DG542, DG643
>2kV ESD Protection per Method 3015.7
TTL/CMOS-Compatible Inputswith Single +5V or ±5V
MAX4567 Typical Application
RF Switching
Video Signal Routing
High-Speed Data Acquisition
Test Equipment
ATE Equipment
Video Signal Routing
High-Speed Data Acquisition
Test Equipment
ATE Equipment

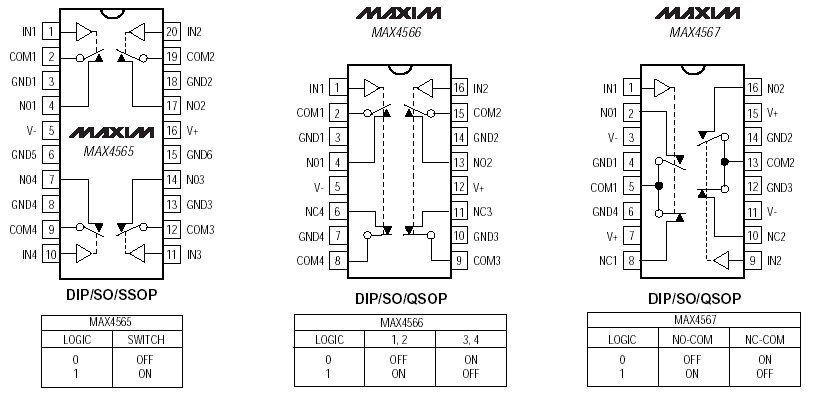

MAX4567 Connection Diagram
MAX4567
PDF/DataSheet Download
- Datasheet: MAX4567
- File Size: 170167 KB
- Manufacturer: Maixm
- Click here to Download
