MFG:MAX Package Cooled:SOP-16 D/C:05
MFG: MAX
Package Cooled: SOP-16
D/C: 05
Description: The MAX4581/MAX4582/MAX4583 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (M...
The MAX4581/MAX4582/MAX4583 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4581), two 4-channel multiplexers (MAX4582), and three single-pole/double-throw (SPDT) switches (MAX4583).
These CMOS devices can operate continuously with ±2V to ±6V dual power supplies or a +2V to +12V single supply. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 1nA at +25or 5nA at +85.
All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V or dual ±5V supplies.
Voltages Referenced to VEE
VCC..................................................................................................-0.3V to 13V
Voltage into Any Terminal (Note 1) .........................(VEE - 0.3V) to (VCC + 0.3V)
Continuous Current into Any Terminal.....................................................±20mA
Peak Current, X_, Y_, Z_
(pulsed at 1ms, 10% duty cycle) .............................................................±40mA
ESD per Method 3015.7 ..........................................................................>2000V
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 10.53mW/°C above +70°C).....................................842mW
Narrow SO (derate 8.70mW/°C above +70°C).......................................696mW
QSOP (derate 8.3mW/°C above +70°C) ................................................667mW
TSSOP (derate 6.7mW/°C above +70°C)................................................457mW
Operating Temperature Ranges
MAX458_C_ ...................................................................................0°C to +70°C
MAX458_E_ ................................................................................-40°C to +85°C
MAX458_A_...............................................................................-40°C to +125°C
Storage Temperature Range ....................................................-65°C to +150°C
Lead Temperature (soldering, 10sec) ......................................................+300°C
Note 1: Voltages exceeding VCC or VEE on any signal terminal are clamped by internal diodes. Limit forward-diode current to maximum current rating.

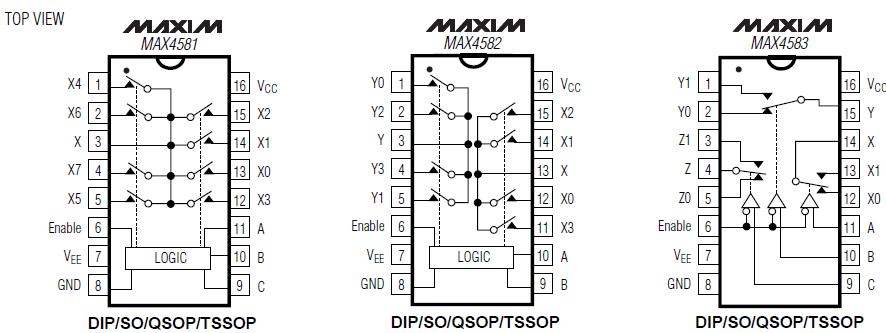

Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4051/MAX4052/MAX4053
Offered in Automotive Temperature Range (-40 to +125)
Guaranteed On-Resistance: 80with ±5V Supplies 150W with Single +5V Supply
Guaranteed On-Resistance Match Between Channels
Guaranteed Low Off-Leakage Current: 1nA at +25
Guaranteed Low On-Leakage Current: 1nA at +25
+2V to +12V Single-Supply Operation ±2V to ±6V Dual-Supply Operation
TTL/CMOS-Logic Compatible
Low Distortion: < 0.02% (600)
Low Crosstalk: < -96dB (50, MAX4582)
High Off-Isolation: < -74dB (50½)
Battery-Operated Equipment Audio and Video Signal Routing Low-Voltage Data-Acquisition Systems Communications Circuits Automotive
MAX4582
