Part Number: MAX4590
Description: The MAX4580/MAX4590/MAX4600 dual analog switches feature low on-resistance of 1.25Ω max. On-resistance is matched...
- Table of contents:
MAX4590
-
Suppliers
DataSheet
General Description
MAX4590 General Description
The MAX4580/MAX4590/MAX4600 dual analog switches feature low on-resistance of 1.25Ω max. On-resistance is matched between switches to 0.25Ω max and is flat (0.3Ω max) over the specified signal range. Each switch can handle Rail-to-Rail ® analog signals. The off-leakage current is only 2.5nA max at +85 C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.
The MAX4580 has two NC (normally closed) switches, the MAX4590 has two NO (normally open) switches, and the MAX4600 has one NC (normally closed) and one NO (normally open) switch. These switches operate from a +4.5V to +36V single supply or from ±4.5V to ±20V dual supplies. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a +12V single supply or ±15V dual supplies.
MAX4590 Maximum Ratings
V+ to GND..............................................................-0.3V to +44V
V- to GND...............................................................+0.3V to -44V
V+ to V-.................................................................-0.3V to +44V
VL to GND.....................................................-0.3V to (V+ + 0.3V)
All Other Pins to GND (Note 1) .............(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ........................±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle) ...................................±300mA
Continuous Power Dissipation (TA = +70°C)
16 SSOP (derate 7.1mW/°C above +70°C)...................571mW
16 Wide SO (derate 9.52mW/°C above +70°C) ...........762mW
16 Plastic DIP (derate 10.53mW/°C above +70°C).......842mW
Operating Temperature Ranges
MAX4_ _0C_E ....................................................0°C to +70°C
MAX40_ _E_E..................................................-40°C to +85°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...........................+300°C
V- to GND...............................................................+0.3V to -44V
V+ to V-.................................................................-0.3V to +44V
VL to GND.....................................................-0.3V to (V+ + 0.3V)
All Other Pins to GND (Note 1) .............(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ........................±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle) ...................................±300mA
Continuous Power Dissipation (TA = +70°C)
16 SSOP (derate 7.1mW/°C above +70°C)...................571mW
16 Wide SO (derate 9.52mW/°C above +70°C) ...........762mW
16 Plastic DIP (derate 10.53mW/°C above +70°C).......842mW
Operating Temperature Ranges
MAX4_ _0C_E ....................................................0°C to +70°C
MAX40_ _E_E..................................................-40°C to +85°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ...........................+300°C
MAX4590 Features
Low On-Resistance (1.25Ω max)
Guaranteed RON Match Between Channels (0.25Ω max)
Guaranteed RON Flatness Over Specified Signal Range (0.3Ω max)
Rail-to-Rail Signal Handling
Guaranteed ESD Protection >2kV per Method 3015.7
Single-Supply Operation: +4.5V to +36V Dual-Supply Operation: ±4.5V to ±20V
TTL/CMOS-Compatible Control Inputs
Guaranteed RON Match Between Channels (0.25Ω max)
Guaranteed RON Flatness Over Specified Signal Range (0.3Ω max)
Rail-to-Rail Signal Handling
Guaranteed ESD Protection >2kV per Method 3015.7
Single-Supply Operation: +4.5V to +36V Dual-Supply Operation: ±4.5V to ±20V
TTL/CMOS-Compatible Control Inputs
MAX4590 Typical Application
Reed Relay Replacement Test Equipment Communication Systems PBX, PABX Systems

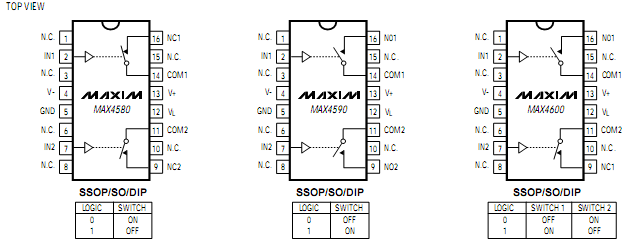

MAX4590 Connection Diagram
MAX4590
