Part Number: MAX4592
Description: The MAX4591/MAX4592/MAX4593 are high-speed,precision, quad, single-pole/single-throw (SPST) analog switches designed to...
- Table of contents:
MAX4592
-
Suppliers
DataSheet
General Description
MAX4592 General Description
The MAX4591/MAX4592/MAX4593 are high-speed,precision, quad, single-pole/single-throw (SPST) analog switches designed to operate at +12V or +15V. The MAX4591 has four normally closed (NC) switches, and the MAX4592 has four normally open (NO) switches.The MAX4593 has two NO and two NC switches. All three devices offer low leakage (100pA max) and fast switching speeds (tON 80ns, tOFF 45ns).
With a +12V supply, the MAX4591/MAX4592/MAX4593 offer guaranteed 1 max channel-to-channel matching,20 max on-resistance (RON), and 1.75 max RON flatness over the specified range.
MAX4592 Maximum Ratings
V+ to GND .............................................................-0.3V to +17V
VIN_, VCOM_, VNC_, VNO_ (Note 1) ................................V- to V+
Current (any terminal) ........................................................30mA
Peak Current, COM_, NO_, NC
(pulsed at 1ms, 10% duty cycle max) ...............................100mA
ESD per Method 3015.7 ..................................................>2000V
Continuous Power Dissipation (TA = +70°C)
16-Pin TSSOP (derate 5.70mW/°C above +70°C) .........457mW
16-Pin Narrow SO (derate 8.70mW/°C above +70°C)....696mW
16-Pin Plastic DIP (derate 10.53mW/°C above+70°C) ...842mW
Operating Temperature Ranges
MAX459_C_ E ........................................................0°C to +70°C
MAX459_E_ E .....................................................-40°C to +85°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ..................................+300°C
VIN_, VCOM_, VNC_, VNO_ (Note 1) ................................V- to V+
Current (any terminal) ........................................................30mA
Peak Current, COM_, NO_, NC
(pulsed at 1ms, 10% duty cycle max) ...............................100mA
ESD per Method 3015.7 ..................................................>2000V
Continuous Power Dissipation (TA = +70°C)
16-Pin TSSOP (derate 5.70mW/°C above +70°C) .........457mW
16-Pin Narrow SO (derate 8.70mW/°C above +70°C)....696mW
16-Pin Plastic DIP (derate 10.53mW/°C above+70°C) ...842mW
Operating Temperature Ranges
MAX459_C_ E ........................................................0°C to +70°C
MAX459_E_ E .....................................................-40°C to +85°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ..................................+300°C
MAX4592 Features
Low 16 On-Resistance
Fast Switching Times: tON = 50ns, tOFF = 30ns
Guaranteed 1 max On-Resistance Match Between Channels
Guaranteed 1.75 max On-Resistance Flatness over Signal Range
Guaranteed 5pC max Charge Injection
Improved Leakage over Temperature: 5nA max at +85°C
ESD >2000V per Method 3015.7
+12V or +15V Single-Supply Operation
Pin Compatible with DG611/DG612/DG613,DG211/DG212/DG213
MAX4592 Typical Application
Test Equipment Sample-and-Hold Circuits
Disk Drives Guidance and Control Systems
Tape Drives Military Radios
Audio and Video Communications Systems
Switching PBX, PABX
Heads-Up Displays
Disk Drives Guidance and Control Systems
Tape Drives Military Radios
Audio and Video Communications Systems
Switching PBX, PABX
Heads-Up Displays

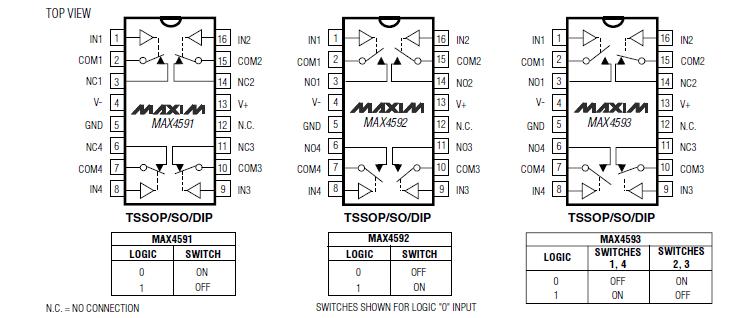

MAX4592 Connection Diagram
| PIN | NAME | FUNCTION |
| 1, 16, 9, 8 | IN1IN4 | Switch Input Terminals. Drive 0.8V for logic "0"; drive 5V for logic "1". |
| 2, 15, 10, 7 | COM1COM4 | Analog Switch Common Terminal |
| 3, 14, 11, 6 | NO1NO4 or NC1NC4 |
Switch I nputs |
| 4 | V- | Negative Supply Voltage Input. Normally connected to ground. |
| 5 | GND | Ground |
| 12 | N.C. | No Connection. Not internally connected. |
| 13 | V+ | Positive Supply Voltage Input. Connected to substrate. |
