MAX4598 General Description
MAX4598 Maximum Ratings
V+ to GND ...........................................................-0.3V to +13V
V- to GND ............................................................-13V to +0.3V
V+ to V-................................................................-0.3V to +13V
A_, EN, LATCH, NLATCH, NO_, COM_
(Note 1)...............................................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (any terminal).................................±20mA
Peak Current, NO_, or COM_
(pulsed at 1ms, 10% duty cycle max) ............................±40mA
Continuous Power Dissipation (TA = +70)
SSOP (derate 8mW/ above +70) .............................640mW
Wide SO (derate 10mW/ above +70).......................800mW
Plastic DIP (derate 10.53mW/ above +70) ..............889mW
Operating Temperature Ranges
MAX4598C_P...........................................................0 to +70
MAX4598E_P .......................................................-40 to +85
Storage Temperature Range .............................-65 to +160
Lead Temperature (soldering, 10sec) .............................+300
MAX4598 Features
`V+ and GND Can Be Switched to the Output Channels
`75 (max) On-Resistance
`Single-Ended or Differential Operation
`2pC (typ) Charge Injection
`Latched or Unlatched Operation
` TTL-Compatible Logic Inputs at ±5V Supply
`Handles Rail-to-Rail Analog Signals
MAX4598 Typical Application
ADC Systems
Battery-Operated Equipment
Test Equipment
Avionics
Audio-Signal Routing
Networking

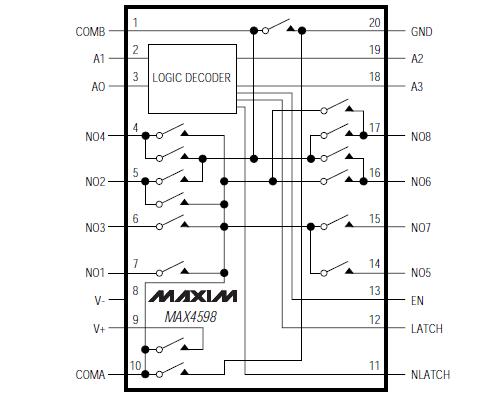

MAX4598 Connection Diagram
