Purchase MAX4599, In-stock MAX4599 From SeekIC.
MFG:MAXIM D/C:04+
Part Number: MAX4599
MFG: MAXIM
D/C: 04+
Description: The MAX4599 single-pole/double-throw (SPDT) switch operates from a +2.0V to +5.5V single supply. It of...
- Table of contents:
MAX4599
-
Suppliers
DataSheet
General Description
MAX4599 General Description
The MAX4599 single-pole/double-throw (SPDT) switch operates from a +2.0V to +5.5V single supply. It offers 60 max on-resistance (RON) at +5V and fast switching times (tON = 30ns max, tOFF = 25ns max).
The MAX4599 features excellent RON flatness (4 max) and matching (1 max) between channels. This device also offers 5pC max charge injection.
The MAX4599 is available in tiny 6-pin SC70 and SOT23 packages.
MAX4599 Maximum Ratings
Voltage Referenced to GND
V+.........................................................................-0.3V to +6V
IN, COM, NO, NC (Note 1) .........................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal)................................±20mA
Peak Current, COM, NO, NC
(pulsed at 1ms, 10% duty cycle)....................................±40mA
Continuous Power Dissipation (TA = +70)
6-Pin SC70-6 (derate 3.1mW/ above +70)...............245mW
6-Pin SOT23-6 (derate 7.1mW/ above +70) ............571mW
Operating Temperature Range
MAX4599E_T .......................................................-40 to +85
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10s) ............................ ....+300
V+.........................................................................-0.3V to +6V
IN, COM, NO, NC (Note 1) .........................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal)................................±20mA
Peak Current, COM, NO, NC
(pulsed at 1ms, 10% duty cycle)....................................±40mA
Continuous Power Dissipation (TA = +70)
6-Pin SC70-6 (derate 3.1mW/ above +70)...............245mW
6-Pin SOT23-6 (derate 7.1mW/ above +70) ............571mW
Operating Temperature Range
MAX4599E_T .......................................................-40 to +85
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10s) ............................ ....+300
MAX4599 Features
`Available in 6-Pin SC70 Package
`60 max (40 typ) On-Resistance
`1 max (0.2 typ) RON Matching Between Channels
`4 max (2.5 typ) RON Flatness
`Fast Switching: tON = 30ns (max)
tOFF = 25ns (max)
`Guaranteed 5pC max Charge Injection
`+2.0V to +5.5V Single-Supply Operation
`200MHz -3dB Bandwidth
`Low ±0.5nA Leakage Current at +25
`Break-Before-Make Switching
`TTL/CMOS-Logic Compatible
`-76dB Off-Isolation at 1MHz
`0.12% Total Harmonic Distortion
`60 max (40 typ) On-Resistance
`1 max (0.2 typ) RON Matching Between Channels
`4 max (2.5 typ) RON Flatness
`Fast Switching: tON = 30ns (max)
tOFF = 25ns (max)
`Guaranteed 5pC max Charge Injection
`+2.0V to +5.5V Single-Supply Operation
`200MHz -3dB Bandwidth
`Low ±0.5nA Leakage Current at +25
`Break-Before-Make Switching
`TTL/CMOS-Logic Compatible
`-76dB Off-Isolation at 1MHz
`0.12% Total Harmonic Distortion
MAX4599 Typical Application
·Battery-Operated Equipment
·Audio and Video Signal Routing
·Cellular Phones
·Low-Voltage Data-Acquisition Systems
·Sample-and-Hold Circuits
·Communications Circuits

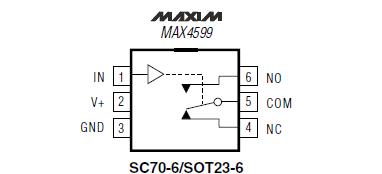

MAX4599 Connection Diagram
MAX4599
PDF/DataSheet Download
- Datasheet: MAX4599
- File Size: 131728 KB
- Manufacturer: Maixm
- Click here to Download
