Part Number: MAX4601
Description: The MAX4601/MAX4602/MAX4603 quad analog switches feature low on-resistance of 2.5
MAX4601 General Description
The MAX4601/MAX4602/MAX4603 quad analog switches feature low on-resistance of 2.5W max. On-resistance is matched between switches to 0.5W max and is flat (0.5W max) over the specified signal range. Each switch can handle Rail-to-Rail® analog signals. The offleakage current is only 2.5nA maximum at TA = +85. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.
The MAX4601 has four normally closed (NC) switches, the MAX4602 has four normally open (NO) switches, and the MAX4603 has two NC and two NO switches. These switches operate from a single supply of +4.5V to +36V or from dual supplies of ±4.5V to ±20V. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±15V or a single +12V supply.
MAX4601 Maximum Ratings
V+ to GND ...........................................................-0.3V to +44V
V- to GND ............................................................+0.3V to -44V
V+ to V-................................................................-0.3V to +44V
VL to GND .......................................(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to DGND (Note 1) .........(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) .......................±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle)...............................±300mA
Continuous Power Dissipation (TA = +70)
16 SSOP (derate 7.1mW/ above +70) ..................571mW
16 Wide SO (derate 9.52mW/ above +70)............762mW
16 Plastic DIP (derate 10.53mW/ above +70) ......842mW
Operating Temperature Ranges
MAX460_C_E ......................................................0 to +70
MAX460_E_E ...................................................-40 to +85
Storage Temperature Range ............................-65 to +160
Lead Temperature (soldering, 10sec) ............................+300
V- to GND ............................................................+0.3V to -44V
V+ to V-................................................................-0.3V to +44V
VL to GND .......................................(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to DGND (Note 1) .........(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) .......................±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle)...............................±300mA
Continuous Power Dissipation (TA = +70)
16 SSOP (derate 7.1mW/ above +70) ..................571mW
16 Wide SO (derate 9.52mW/ above +70)............762mW
16 Plastic DIP (derate 10.53mW/ above +70) ......842mW
Operating Temperature Ranges
MAX460_C_E ......................................................0 to +70
MAX460_E_E ...................................................-40 to +85
Storage Temperature Range ............................-65 to +160
Lead Temperature (soldering, 10sec) ............................+300
MAX4601 Features
Low On-Resistance (2.5W max)
Guaranteed RON Match Between Channels
(0.5W max)
Guaranteed RON Flatness over Specified Signal
Range (0.5W max)
Rail-to-Rail Signal Handling
Guaranteed ESD Protection > 2000V per
Method 3015.7
Single-Supply Operation: +4.5V to +36V
Dual-Supply Operation: ±4.5V to ±20V
TTL/CMOS-Compatible Control Inputs
Guaranteed RON Match Between Channels
(0.5W max)
Guaranteed RON Flatness over Specified Signal
Range (0.5W max)
Rail-to-Rail Signal Handling
Guaranteed ESD Protection > 2000V per
Method 3015.7
Single-Supply Operation: +4.5V to +36V
Dual-Supply Operation: ±4.5V to ±20V
TTL/CMOS-Compatible Control Inputs
MAX4601 Typical Application
Reed Relay Replacement
Test Equipment
Communication Systems
PBX, PABX Systems
Audio-Signal Routing
Avionics
Test Equipment
Communication Systems
PBX, PABX Systems
Audio-Signal Routing
Avionics

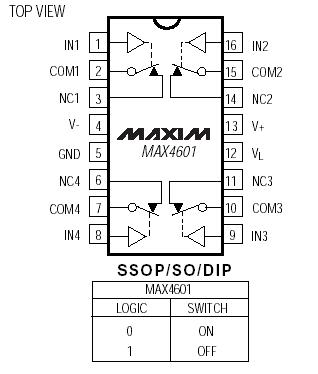

MAX4601 Connection Diagram
MAX4601
