General Description
MAX4644 General Description
The MAX4644 is a single-pole/double-throw (SPDT) switch that operates from a single supply ranging from +1.8V to +5.5V. It provides low 4 on-resistance (RON) flatness over the entire analog signal as well as 1 RON range. The MAX4644 offers fast switching times of less than 20ns while ensuring break-before-make operation. It typically consumes only 0.01PAW of quiescent power making it suitable for use in low-power, portable applications.
The MAX4644's features include low leakage current over the entire temperature range, TTL/CMOS-compatible digital logic, and excellent AC characteristics. It is packaged in either a small 8-pin MAX or a tiny 6-pin SOT23.
MAX4644 Maximum Ratings
All Voltages Referenced to GND
V+......................................................................-0.3V to +6V
IN, COM, NO, NC (Note 1).......................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal)............................±20mA
Continuous Current (NO, NC, and COM)....................±50mA
Peak Current (NO, NC, and COM, pulsed at 1ms,
10% duty cycle)....................................................±100mA
Continuous Power Dissipation (TA= +70)
6-Pin SOT23 (derate 8.70mW/ above +70).......696mW
8-Pin PAMAX (derate 4.5mW/ above +70).........362mW
Operating Temperature Range.......................-40 to +85
Junction Temperature.................................................+150
Storage Temperature Range.........................-65 to +150
Lead Temperature (soldering, 10s).............................+300
V+......................................................................-0.3V to +6V
IN, COM, NO, NC (Note 1).......................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal)............................±20mA
Continuous Current (NO, NC, and COM)....................±50mA
Peak Current (NO, NC, and COM, pulsed at 1ms,
10% duty cycle)....................................................±100mA
Continuous Power Dissipation (TA= +70)
6-Pin SOT23 (derate 8.70mW/ above +70).......696mW
8-Pin PAMAX (derate 4.5mW/ above +70).........362mW
Operating Temperature Range.......................-40 to +85
Junction Temperature.................................................+150
Storage Temperature Range.........................-65 to +150
Lead Temperature (soldering, 10s).............................+300
MAX4644 Features
*+1.8V to +5.5V Single-Supply Operation
*Rail-to-Rail® Analog Signal Range
*Guaranteed RON
4 max (+5V supply)
8 max (+3V supply)
*+1.8V Operation
RON 30 typ Over Temperature
tON 18ns typ, tOFF 12ns typ
*Guaranteed RON Flatness: 0.75 typ (+5V supply)
*Guaranteed RON Match Between Channels:
0.1 typ (+5V supply)
*Low Leakage (<0.35nA) Over Entire Temperature Range
*Excellent AC Characteristics
Low Crosstalk: -82dB at 1MHz
High Off-Isolation: -80dB at 1MHz
0.018% Total Harmonic Distortion
*Low Power Consumption: < 0.01W
*Rail-to-Rail® Analog Signal Range
*Guaranteed RON
4 max (+5V supply)
8 max (+3V supply)
*+1.8V Operation
RON 30 typ Over Temperature
tON 18ns typ, tOFF 12ns typ
*Guaranteed RON Flatness: 0.75 typ (+5V supply)
*Guaranteed RON Match Between Channels:
0.1 typ (+5V supply)
*Low Leakage (<0.35nA) Over Entire Temperature Range
*Excellent AC Characteristics
Low Crosstalk: -82dB at 1MHz
High Off-Isolation: -80dB at 1MHz
0.018% Total Harmonic Distortion
*Low Power Consumption: < 0.01W
MAX4644 Typical Application
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Sample-and-Hold Circuits
Communications Circuits
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Sample-and-Hold Circuits
Communications Circuits

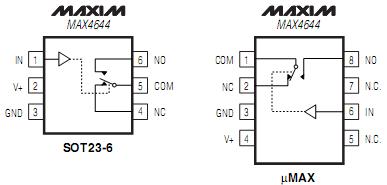

MAX4644 Connection Diagram
MAX4644
