General Description
MAX4663 General Description
The MAX4661/MAX4662/MAX4663 quad analog switches feature low on-resistance of 2.5½ max. On-resistance is matched between switches to 0.5W max and is flat (0.5W max) over the specified signal range. Each switch can handle Rail-to-Rail® analog signals. Offleakage current is only 5nA max at TA = +85°C. These analog switches are ideal in low-distortion applications
and are the preferred solution over mechanical relays in automatic test equipment or applications where current witching is required. They have lower power requirements, use less board space, and are more reliable than mechanical relays.
The MAX4661 has four normally closed (NC) switches, and the MAX4662 has four normally open (NO) switches. The MAX4663 has two NC and two NO switches, and features guaranteed break-before-make switching.
These devices operate from a single +4.5V to +36V supplyor from dual ±4.5V to ±20V supplies. A separate logicsupply pin guarantees TTL/CMOS-logic compatibility when operating across the entire supply voltage range.
MAX4663 Maximum Ratings
V+ to GND ..............................................................-0.3V to +44V
V- to GND ..............................................................+0.3V to -44V
V+ to V-...................................................................-0.3V to +44V
VL to GND ...................................... .(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to GND (Note 1) .............(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ................... .....±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle).......................... ...... ±300mA
Continuous Power Dissipation (TA = +70°C)
SSOP (derate 7.1mW/°C above +70°C) .......................571mW
Wide SO (derate 9.52mW/°C above +70°C).................762mW
Plastic DIP (derate 10.53mW/°C above +70°C) ...........842mW
Operating Temperature Ranges
MAX466_C_E ......................................................0°C to +70°C
MAX466_E_E ...................................................-40°C to +85°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10sec) ...........................+300°C
V- to GND ..............................................................+0.3V to -44V
V+ to V-...................................................................-0.3V to +44V
VL to GND ...................................... .(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to GND (Note 1) .............(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ................... .....±200mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle).......................... ...... ±300mA
Continuous Power Dissipation (TA = +70°C)
SSOP (derate 7.1mW/°C above +70°C) .......................571mW
Wide SO (derate 9.52mW/°C above +70°C).................762mW
Plastic DIP (derate 10.53mW/°C above +70°C) ...........842mW
Operating Temperature Ranges
MAX466_C_E ......................................................0°C to +70°C
MAX466_E_E ...................................................-40°C to +85°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10sec) ...........................+300°C
MAX4663 Features
* Low On-Resistance (2.5W max)
* Guaranteed RON Match Between Channels (0.5W max)
* Guaranteed RON Flatness over Specified Signal Range (0.5W max)
* Rail-to-Rail Signal Handling
* Guaranteed Break-Before-Make (MAX4663)
* > 2kV ESD Protection per Method 3015.7
* +4.5V to +36V Single-Supply Operation ±4.5V to ±20V Dual-Supply Operation
* TTL/CMOS-Compatible Control Inputs
* Guaranteed RON Match Between Channels (0.5W max)
* Guaranteed RON Flatness over Specified Signal Range (0.5W max)
* Rail-to-Rail Signal Handling
* Guaranteed Break-Before-Make (MAX4663)
* > 2kV ESD Protection per Method 3015.7
* +4.5V to +36V Single-Supply Operation ±4.5V to ±20V Dual-Supply Operation
* TTL/CMOS-Compatible Control Inputs
MAX4663 Typical Application
Reed Relay Replacement
Avionics
Test Equipment
ADC Systems
Communication Systems
Sample-and-Hold Circuits
PBX, PABX Systems
Data Acquisition Systems
Audio-Signal Routing
Avionics
Test Equipment
ADC Systems
Communication Systems
Sample-and-Hold Circuits
PBX, PABX Systems
Data Acquisition Systems
Audio-Signal Routing

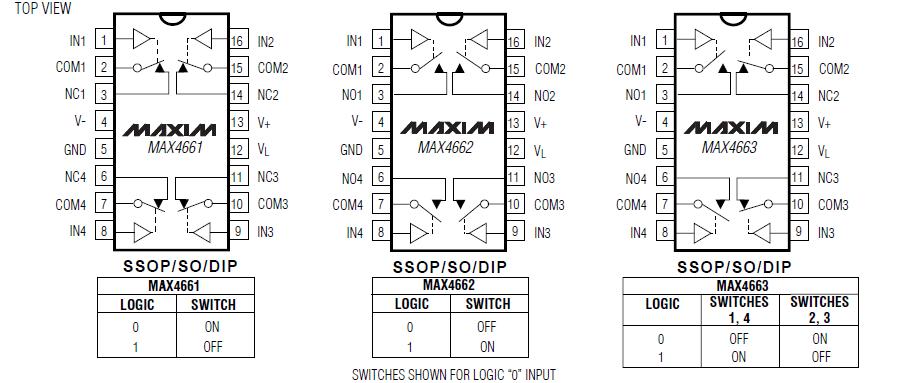

MAX4663 Connection Diagram
MAX4663
