Purchase MAX4665, In-stock MAX4665 From SeekIC.
MFG:MAX D/C:152
Part Number: MAX4665
MFG: MAX
D/C: 152
Description: The MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance. On-resistance is matched between s...
- Table of contents:
MAX4665
-
Suppliers
DataSheet
General Description
MAX4665 General Description
The MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle Rail-to-Rail ® analog signals. The off-leakage current is only 5nA max at +85°C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equip ment or in applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.
The MAX4664 has four normally closed (NC) switches, the MAX4665 has four normally open (NO) switches, and the MAX4666 has two NC and two NO switches that guarantee break-before-make switching times. These switches operate from a single +4.5V to +36V supply or from dual ±4.5V to ±20V supplies. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±15V supplies or a single +12V supply.
MAX4665 Maximum Ratings
V+ to GND..............................................................-0.3V to +44V
V- to GND ..............................................................+0.3V to -44V
V+ to V-...................................................................-0.3V to +44V
VL to GND ........................................(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to DGND (Note 1) ......... (V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ........................±100mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle)............................... ±300mA
Continuous Power Dissipation (TA = +70°C)
Narrow SO (derate 8.70mW/°C above +70°C) ...............696mW
Plastic DIP (derate 10.53mW/°C above +70°C)..............842mW
Operating Temperature Ranges
MAX466_C_E ......................................................0°C to +70°C
MAX466_E_E ....................................................-40°C to +85°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10sec) ............................+300°C
V- to GND ..............................................................+0.3V to -44V
V+ to V-...................................................................-0.3V to +44V
VL to GND ........................................(GND - 0.3V) to (V+ + 0.3V)
All Other Pins to DGND (Note 1) ......... (V- - 0.3V) to (V+ + 0.3V)
Continuous Current (COM_, NO_, NC_) ........................±100mA
Peak Current (COM_, NO_, NC_)
(pulsed at 1ms, 10% duty cycle)............................... ±300mA
Continuous Power Dissipation (TA = +70°C)
Narrow SO (derate 8.70mW/°C above +70°C) ...............696mW
Plastic DIP (derate 10.53mW/°C above +70°C)..............842mW
Operating Temperature Ranges
MAX466_C_E ......................................................0°C to +70°C
MAX466_E_E ....................................................-40°C to +85°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10sec) ............................+300°C
MAX4665 Features
* Low On-Resistance (5Ω max)
* Guaranteed RON Match Between Channels
(0.5Ω max)
* Guaranteed RON Flatness over Specified Signal
Range (0.5Ω max)
* Guaranteed Break-Before-Make (MAX4666)
* Rail-to-Rail Signal Handling
* Guaranteed ESD Protection > 2kV per
Method 3015.7
* +4.5V to +36V Single-Supply Operation
±4.5V to ±20V Dual-Supply Operation
* TTL/CMOS-Compatible Control Inputs
* Guaranteed RON Match Between Channels
(0.5Ω max)
* Guaranteed RON Flatness over Specified Signal
Range (0.5Ω max)
* Guaranteed Break-Before-Make (MAX4666)
* Rail-to-Rail Signal Handling
* Guaranteed ESD Protection > 2kV per
Method 3015.7
* +4.5V to +36V Single-Supply Operation
±4.5V to ±20V Dual-Supply Operation
* TTL/CMOS-Compatible Control Inputs
MAX4665 Typical Application
*Reed Relay Replacement
*Test Equipment
*Communication Systems
*PBX, PABX Systems
* Audio-Signal Routing
*Avionics
*Test Equipment
*Communication Systems
*PBX, PABX Systems
* Audio-Signal Routing
*Avionics

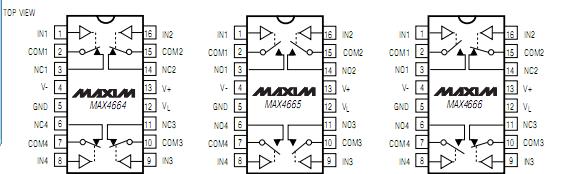

MAX4665 Connection Diagram
MAX4665
