General Description
MAX5168 General Description
The MAX5168 contains 32 sample/hold amplifiers and four 1-of-8 multiplexers. The logic controlling the muxes and sample/hold amplifiers combines the four muxes into a unified 1-of-32 multiplexer with a sample/hold at each output. Additional logic allows two devices to function as a single 64-channel unit. The MAX5168 is available with an output impedance of 50Ω, 500Ω, or 1kΩ.
The MAX5168 operates with +10V and -5V supplies, and a separate +5V digital logic supply. Manufactured with a proprietary BiCMOS process, it provides high accuracy, fast acquisition time, a low droop rate, and a low hold step. The MAX5168 has a typical linearity error of less than 0.01% and can accurately acquire 8V step input signals to 0.01% accuracy in 2.5µs within the +7V to -4V input signal range. Transitions from sample mode to hold mode result in only a 0.5mV error. While in hold mode, the output voltage slowly droops at a rate of 1mV/s.
The MAX5168 is available in a 48-pin TQFP package and is specified for both the commercial (0°C to +70°C) and extended industrial (-40°C to +85°C) temperature ranges.
MAX5168 Maximum Ratings
VDD to AGND.......................................................-0.3V to +11.0V
VSS to AGND .........................................................-6.0V to +0.3V
VDD to VSS ....................................................................+15.75V
VL to DGND ..........................................................-0.3V to +6.0V
VL to AGND ...........................................................-0.3V to +6.0V
DGND to AGND......................................................-0.3V to +2.0V
IN, OUT_ ...................................................................VSS to VDD
Logic Inputs to DGND ..........................................-0.3V to +6.0V
Maximum Current into OUT_ ...........................................±10mA
Maximum Current into Logic Inputs ................................±20mA
Continuous Power Dissipation (TA = +70°C)
48-Pin TQFP (derate 12.5mW/°C above +70°C)......1000mW
Operating Temperature Ranges
MAX5168_CCM ................................................0°C to +70°C
MAX5168_ECM..............................................-40°C to +85°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ...............................+300°C
MAX5168 Features
32-Channel Sample/Hold
0.01% Accuracy of Acquired Signal
0.01% Linearity Error
Fast Acquisition Time: 2.5µs
Low Droop Rate: 1mV/s
Low Hold Step: 0.25mV
Wide Output Voltage Range: +7V to -4V
0.01% Accuracy of Acquired Signal
0.01% Linearity Error
Fast Acquisition Time: 2.5µs
Low Droop Rate: 1mV/s
Low Hold Step: 0.25mV
Wide Output Voltage Range: +7V to -4V
MAX5168 Typical Application
Automatic Test Systems (ATE)
Industrial Process Controls
Arbitrary Function Generators
Avionics Equipment
Industrial Process Controls
Arbitrary Function Generators
Avionics Equipment

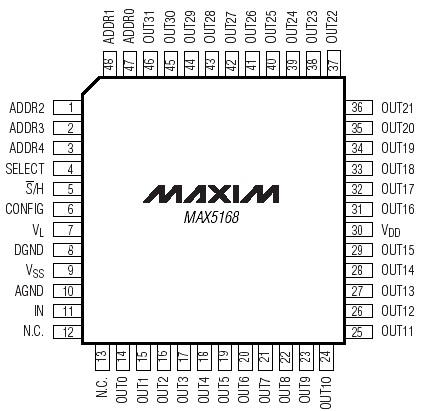

MAX5168 Connection Diagram
MAX5168
