Part Number: MAX5312
Description: The MAX5312 12-bit, serial-interface, digital-to-analog converter (DAC) provides bipolar ±5V to ±10V o...
- Table of contents:
MAX5312
-
Suppliers
DataSheet
General Description
MAX5312 General Description
The MAX5312 12-bit, serial-interface, digital-to-analog converter (DAC) provides bipolar ±5V to ±10V outputs from ±12V to ±15V power-supply voltages, or a unipolar 5V to 10V output from a single 12V to 15V powersupply voltage.
The MAX5312 features excellent linearity with both integral nonlinearity (INL) and differential nonlinearity (DNL) guaranteed to ±1 LSB (max). The device also features a fast 10µs to 0.5 LSB settling time, and a hardwareshutdown feature that reduces current consumption to 3.5µA. The output goes to midscale at power-up in bipolar mode (0V), and to zero scale at power-up in unipolar mode (0V). A clear input (CLR) asynchronously clears the DAC register and sets the output to 0V. The output can be asynchronously updated with the load DAC (LDAC) input.
The device features a 10MHz SPI™-/QSPI™-/ MICROWIRE™-compatible serial interface that operates with 3V or 5V logic. Additional features include a serial-data output (DOUT) for daisy chaining and readback functions. The MAX5312 requires a 2V to 5.25V external reference voltage and is available in a 16-pin SSOP package that operates over the extended -40°C to +85°C temperature range.
MAX5312 Maximum Ratings
VDD to AGND..........................................................-0.3V to +17V
VSS to AGND .........................................................-17V to +0.3V
VDD to VSS .........................................................................+34V
VCC to DGND ..........................................................-0.3V to +6V
AGND to DGND.....................................................-0.3V to +0.3V
SGND to AGND.....................................................-0.3V to +0.3V
SCLK, DIN, CS, SHDN, UNI/BIP, CLR,
LDAC, DOUT to DGND ...............................-0.3V to (VCC + 0.3V)
OUT to AGND ..................................(VSS - 0.3V) to (VDD + 0.3V)
REF to AGND...........................................................-0.3V to +6V
Maximum Current into REF..............................................±10mA
Maximum Current into Any Pin Excluding REF.................±50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin SSOP (derate 7.1mW/°C above +70°C) ..........571mW
Operating Temperature Range ......................-40°C to +85°C
Junction Temperature..................................................+150°C
Storage Temperature Range .......................-65°C to +150°C
Lead Temperature (soldering, 10s) ............................+300°C
VSS to AGND .........................................................-17V to +0.3V
VDD to VSS .........................................................................+34V
VCC to DGND ..........................................................-0.3V to +6V
AGND to DGND.....................................................-0.3V to +0.3V
SGND to AGND.....................................................-0.3V to +0.3V
SCLK, DIN, CS, SHDN, UNI/BIP, CLR,
LDAC, DOUT to DGND ...............................-0.3V to (VCC + 0.3V)
OUT to AGND ..................................(VSS - 0.3V) to (VDD + 0.3V)
REF to AGND...........................................................-0.3V to +6V
Maximum Current into REF..............................................±10mA
Maximum Current into Any Pin Excluding REF.................±50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin SSOP (derate 7.1mW/°C above +70°C) ..........571mW
Operating Temperature Range ......................-40°C to +85°C
Junction Temperature..................................................+150°C
Storage Temperature Range .......................-65°C to +150°C
Lead Temperature (soldering, 10s) ............................+300°C
MAX5312 Features
`Unipolar or Bipolar Output-Voltage Ranges
Unipolar: 0 to (+2 x VREF) (Single or Dual
Supply)
Bipolar: (-2 x VREF) to (+2 x VREF) (Dual Supply)
`Guaranteed INL ±1 LSB (max)
`Guaranteed Monotonic: DNL ±1 LSB (max)
`10µs Settling Time to 0.5 LSB
`Low 3.5µA Shutdown Current
`10MHz SPI-/QSPI-/MICROWIRE-Compatible Serial Interface
`Power-On Reset Sets DAC Output to 0V
`Schmitt Trigger Inputs for Direct Optocoupler Interface
`Serial-Data Output Allows Daisy Chaining of Devices
`Small 16-Pin SSOP
Unipolar: 0 to (+2 x VREF) (Single or Dual
Supply)
Bipolar: (-2 x VREF) to (+2 x VREF) (Dual Supply)
`Guaranteed INL ±1 LSB (max)
`Guaranteed Monotonic: DNL ±1 LSB (max)
`10µs Settling Time to 0.5 LSB
`Low 3.5µA Shutdown Current
`10MHz SPI-/QSPI-/MICROWIRE-Compatible Serial Interface
`Power-On Reset Sets DAC Output to 0V
`Schmitt Trigger Inputs for Direct Optocoupler Interface
`Serial-Data Output Allows Daisy Chaining of Devices
`Small 16-Pin SSOP
MAX5312 Typical Application
·Motor Control
·Industrial Process Controls
·Industrial Automation
·Automatic Test Equipment (ATE)
·Analog I/O Boards
·Data-Acquisition Systems
·Industrial Process Controls
·Industrial Automation
·Automatic Test Equipment (ATE)
·Analog I/O Boards
·Data-Acquisition Systems

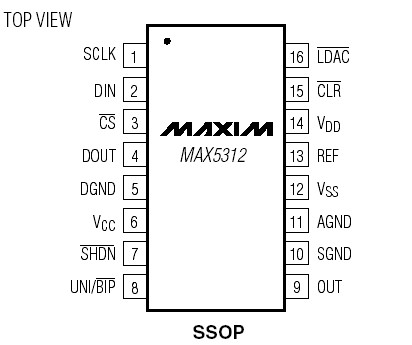

MAX5312 Connection Diagram
MAX5312
PDF/DataSheet Download
- Datasheet: MAX5312
- File Size: 1103431 KB
- Manufacturer: MAXIM
- Click here to Download
