MAX5480 General Description


The MAX5480 is a CMOS, 8-bit digital-to-analog con-verter (DAC) that interfaces directly with most micro-processors. On-chip input latches make the DAC load cycle interface similar to a RAM write cycle, where CS and WR are the only control inputs required.Linearity of ±1/2LSB is guaranteed, and power con-sumption is less than 500µW. Monotonicity is guaran-teed over the full operating temperature range.The MAX5480 can be operated in either voltage-output or current-output mode. It is available in a small 16-pin QSOP package.

MAX5480 Maximum Ratings

VDDto GND............................................................-0.3V to +17V
REF to GND.........................................................................±25V
RFB to GND.........................................................................±25V
Digital Inputs to GND.................................-0.3V to (VDD+ 0.3V)
OUT1, OUT2 to GND................................................-0.3V to VDD
Operating Temperature Ranges
MAX5480_CEE....................................................0°C to +70°C
MAX5480_EEE.................................................-40°C to +85°C
Storage Temperature Range.............................-65°C to +160°C
Continuous Power Dissipation (TA= +70°C)
MAX5480_ _EE (derate 8.3mW/°C above +70°C)........667mW
Lead Temperature (soldering 10sec)..............................+300°C

MAX5480 Features

QSOP-16 Package (same footprint as SO-8)
Single +5V Supply Operation
VOUTor IOUTOperation
8-Bit Parallel Interface
Guaranteed Monotonic Over Temperature
Low Power Consumption-100µA max
±1/2LSB Linearity Over Temperature

MAX5480 Typical Application

Digitally Adjusted Power Supplies
Programmable Gain
Automatic Test Equipment
Portable, Battery-Powered Instruments
VCO Frequency Control
RF Transmit Control in Portable Radios

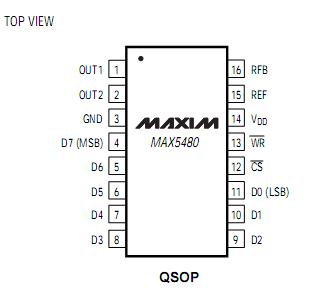

MAX5480 Connection Diagram
