General Description
MAX5774 General Description
The MAX5773/MAX5774/MAX5775 32-channel, 14-bit, voltage-output, digital-to-analog converters (DACs) are ideal for applications requiring a high number of programmable voltages. The MAX5773/MAX5774/MAX5775 can be programmed to calibrate the 14-bit input data word for gain and offset errors before updating the DAC output.
An SPI™-/QSPI™-/MICROWIRE™- or DSP-compatible serial interface controls the MAX5773/MAX5774/ MAX5775. Each DAC channel has its own input, gain, and offset register. These three registers pass data through one of the two multiplier accumulator units (MACs), resulting in a voltage output corrected for gain and offset error. Each DAC channel has a doublebuffered input structure to minimize the digital-noise feedthrough from the digital inputs to the outputs, and allows for synchronous or asynchronous updating of the outputs. The DAC outputs update independently or simultaneously with a single software or hardware command.
The MAX5773/MAX5774/MAX5775 also provide a digital output (DOUT) that allows for readback or daisy chaining of multiple devices.
All DAC outputs are buffered and drive 10kΩ in parallel with 100pF. The MAX5773 has a 0 to +10V output range; the MAX5774 has a -2.5V to +7.5V output range; and the MAX5775 has a -5V to +5V output range. The MAX5773/MAX5774/MAX5775 are available in a 68-pin, 10mm x 10mm, TQFN package and a 64-pin, 12mm x 12mm, TQFP package. The MAX5773/ MAX5774/MAX5775 are specified over the 0°C to +85°C temperature range. Refer to the MAX5753/MAX5754/ MAX5755 data sheet for similar 14-bit, 32-channel DACs without offset and gain calibration.
MAX5774 Maximum Ratings
AVCC to VSS, AGND, DGND, REFGND..................-0.3V to +12V
VSS to AGND, DGND.............................................-6V to +0.3V
AVDD to AGND, DGND, REFGND............................-0.3V to +6V
DVDD to AGND, DGND, REFGND .........................-0.3V to AVDD
AGND to DGND.................................................-0.3V to +0.3V
REF to AGND,
DGND, REFGND..-0.3V to the lower of (AVDD + 0.3V) and +6V
REFGND to AGND............................................. -0.3V to +0.3V
Digital Inputs to AGND, DGND,
REFGND.............-0.3V to the lower of (DVDD + 0.3V) and +6V
DOUT to DGND..-0.3V to the lower of (DVDD + 0.3V) and +6V
OUT_ to VSS.... -0.3V to the lower of (AVCC +0.3V) and +12V
GS1, GS2 to AGND .................................................-1V to +1V
GS1, GS2 to VSS..................................................-0.3V to +6V
Maximum Current into REF...........................................±10mA
Maximum Current into Any Other Pin ...........................±50mA
Maximum Power Dissipation (TA = +70°C)
68-Pin TQFN (derate 50.0mW/°C above +70°C) ............4.0W
64-Pin TQFP (derate 25.0mW/°C above +70°C)..............2.0W
Operating Temperature Range ..........................0°C to +85°C
Junction Temperature....................................................+150°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10s) ...............................+300°C
VSS to AGND, DGND.............................................-6V to +0.3V
AVDD to AGND, DGND, REFGND............................-0.3V to +6V
DVDD to AGND, DGND, REFGND .........................-0.3V to AVDD
AGND to DGND.................................................-0.3V to +0.3V
REF to AGND,
DGND, REFGND..-0.3V to the lower of (AVDD + 0.3V) and +6V
REFGND to AGND............................................. -0.3V to +0.3V
Digital Inputs to AGND, DGND,
REFGND.............-0.3V to the lower of (DVDD + 0.3V) and +6V
DOUT to DGND..-0.3V to the lower of (DVDD + 0.3V) and +6V
OUT_ to VSS.... -0.3V to the lower of (AVCC +0.3V) and +12V
GS1, GS2 to AGND .................................................-1V to +1V
GS1, GS2 to VSS..................................................-0.3V to +6V
Maximum Current into REF...........................................±10mA
Maximum Current into Any Other Pin ...........................±50mA
Maximum Power Dissipation (TA = +70°C)
68-Pin TQFN (derate 50.0mW/°C above +70°C) ............4.0W
64-Pin TQFP (derate 25.0mW/°C above +70°C)..............2.0W
Operating Temperature Range ..........................0°C to +85°C
Junction Temperature....................................................+150°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10s) ...............................+300°C
MAX5774 Features
· Offset and Gain Correction for Each DAC Channel
· Guaranteed Monotonic to 14 Bits
· 32 Individual DACs in a 10mm x 10mm, 68-Pin TQFN Package or 12mm x 12mm, 64-Pin TQFP Package
· Output Voltage Ranges
0 to +10V (MAX5773)
- 2.5V to +7.5V (MAX5774)
-5V to +5V (MAX5775)
· Buffered Voltage Outputs Drive 10kΩ || 100pF
· Glitch-Free Power-Up
· SPI/QSPI/MICROWIRE- and DSP-Compatible 33MHz Serial Interface
· Guaranteed Monotonic to 14 Bits
· 32 Individual DACs in a 10mm x 10mm, 68-Pin TQFN Package or 12mm x 12mm, 64-Pin TQFP Package
· Output Voltage Ranges
0 to +10V (MAX5773)
- 2.5V to +7.5V (MAX5774)
-5V to +5V (MAX5775)
· Buffered Voltage Outputs Drive 10kΩ || 100pF
· Glitch-Free Power-Up
· SPI/QSPI/MICROWIRE- and DSP-Compatible 33MHz Serial Interface
MAX5774 Typical Application
·Automatic Test Systems
·Optical Router Controls
·Industrial Process Controls
·Arbitrary Function Generators
·Avionics Equipment
·Minimum Component Count Analog Systems
·Digital Offset/Gain Adjustment
·Optical Router Controls
·Industrial Process Controls
·Arbitrary Function Generators
·Avionics Equipment
·Minimum Component Count Analog Systems
·Digital Offset/Gain Adjustment

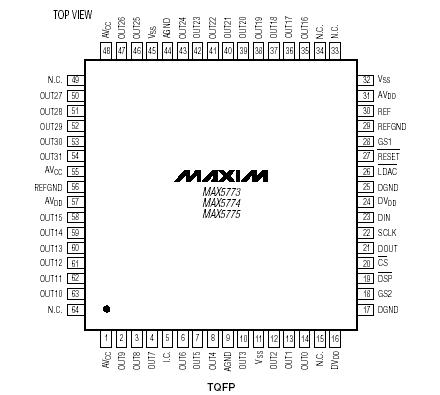

MAX5774 Connection Diagram
MAX5774
