Part Number: MAX6672
Description: The MAX6672/MAX6673 are low-current temperaturesensors with a single-wire output. These temperaturesen...
- Table of contents:
MAX6672
-
Suppliers
DataSheet
General Description
MAX6672 General Description
The MAX6672/MAX6673 are low-current temperaturesensors with a single-wire output. These temperaturesensors convert the ambient temperature into a 1.4kHzPWM output, which contains the temperature informa-tion in its duty cycle. The MAX6672 has an open-drainoutput and the MAX6673 has a push-pull output.
The MAX6672/MAX6673 operate from 2.4V to 5.5V witha maximum supply current of 150A. Both devices fea-ture a single-wire output that minimizes the number ofpins necessary to interface with a microprocessor.
The MAX6672/MAX6673 are available in 5-pin SC70packages.
MAX6672 Maximum Ratings
Supply Voltage (VCC to GND)................................. -0.3V to +6V
DOUT to GND (MAX6672)........................................-0.3V to +6V
DOUT to GND (MAX6673)..........................-0.3V to (VCC + 0.3V)
DOUT Short to GND..................................................Continuous
ESD Protection (Human Body Model)........................... ±2000V
Continuous Power Dissipation (TA = +70)
5-Pin SC70 (derate 2.5mW/ above +70)..................200mW
Operating Temperature Range .........................-40 to +125
Storage Temperature Range.............................-65 to +150
Junction Temperature.....................................................+150
SC70 Package
Vapor Phase (60s)......................................................... +215
Infrared (15s)................................................................ +220
Lead Temperature (soldering, 10s)................................ +300
DOUT to GND (MAX6672)........................................-0.3V to +6V
DOUT to GND (MAX6673)..........................-0.3V to (VCC + 0.3V)
DOUT Short to GND..................................................Continuous
ESD Protection (Human Body Model)........................... ±2000V
Continuous Power Dissipation (TA = +70)
5-Pin SC70 (derate 2.5mW/ above +70)..................200mW
Operating Temperature Range .........................-40 to +125
Storage Temperature Range.............................-65 to +150
Junction Temperature.....................................................+150
SC70 Package
Vapor Phase (60s)......................................................... +215
Infrared (15s)................................................................ +220
Lead Temperature (soldering, 10s)................................ +300
MAX6672 Features
Simple Single-Wire PWM Output
Tiny SC70 Package
Low 60A (typ) Supply Current Consumption
1.4kHz Nominal Frequency
Choice of Outputs
Open Drain (MAX6672)
Push-Pull (MAX6673)
2.4V to 5.5V Supply Range
Tiny SC70 Package
Low 60A (typ) Supply Current Consumption
1.4kHz Nominal Frequency
Choice of Outputs
Open Drain (MAX6672)
Push-Pull (MAX6673)
2.4V to 5.5V Supply Range
MAX6672 Typical Application
Industrial and Process Control
HVAC
Automotive
Environmental Control
Isolated Temperature Sensing
HVAC
Automotive
Environmental Control
Isolated Temperature Sensing

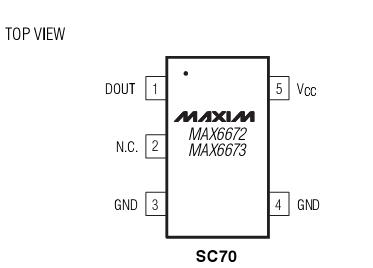

MAX6672 Connection Diagram
MAX6672
