Purchase MAX810RTR, In-stock MAX810RTR From SeekIC.
MFG:ON D/C:06+
Part Number: MAX810RTR
MFG: ON
D/C: 06+
Description: The MAX809 and MAX810 are costeffective system supervisor circuits designed to monitor VCC in digital ...
- Table of contents:
MAX810RTR
-
Suppliers
DataSheet
General Description
MAX810RTR General Description
The MAX809 and MAX810 are costeffective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20 msec of VCC falling through the reset voltage threshold.
Reset is maintained active for a minimum of 140msec after VCC rises above the reset threshold. The MAX810 has an activehigh RESET output while the MAX809 has an activelow RESET output. The output of the MAX809 is guaranteed valid down to VCC = 1V. Both devices are available in a SOT23 package.
The MAX809/810 are optimized to reject fast transient glitches on the VCC line. Low supply current of 17mA (VCC = 3.3V) makes these devices suitable for battery powered applications.
MAX810RTR Maximum Ratings
| Symbol | Parameter | Value | Unit |
| Supply Voltage (VCC to GND) | 6.0 | V | |
| RESET, RESET | 0.3 to (VCC + 0.3) | V | |
| Input Current, VCC | 20 | mA | |
| Output Current, RESET, RESET | 20 | mA | |
| dV/dt (VCC) | 100 | V/msec | |
| PD | Power Dissipation (TA <70°C) SOT23 (derate 4mW/°C above +70°C) |
230 | V |
| TA | Operating Temperature Range | 40 to +85 | °C |
| Tstg | Storage Temperature Range | 65 to +150 | °C |
| Tsol | Lead Temperature (Soldering, 10 Seconds) | +260 | °C |
MAX810RTR Features
• Precision VCC Monitor for 3.0V, 3.3V, and 5.0V Supplies
• 140msec Guaranteed Minimum RESET, RESET Output Duration
• RESET Output Guaranteed to VCC = 1.0V (MAX809)
• Low 17mA Supply Current
• VCC Transient Immunity
• Small SOT23 Package
• No External Components
• Wide Operating Temperature: 40°C to 85°C
• 140msec Guaranteed Minimum RESET, RESET Output Duration
• RESET Output Guaranteed to VCC = 1.0V (MAX809)
• Low 17mA Supply Current
• VCC Transient Immunity
• Small SOT23 Package
• No External Components
• Wide Operating Temperature: 40°C to 85°C
MAX810RTR Typical Application
• Computers
• Embedded Systems
• Battery Powered Equipment
• Critical mP Power Supply Monitoring
• Embedded Systems
• Battery Powered Equipment
• Critical mP Power Supply Monitoring

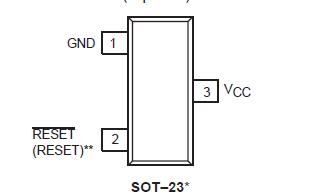

MAX810RTR Connection Diagram
MAX810RTR
PDF/DataSheet Download
- Datasheet: MAX810RTR
- File Size: 122266 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
