MAX8758

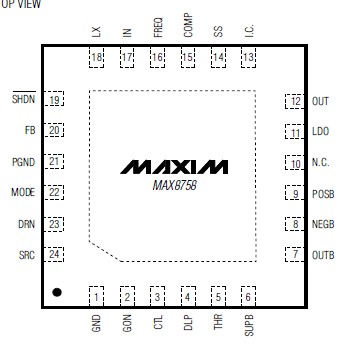

ABSOLUTE MAXIMUM RATINGS
IN,SHDN, CTL, LDO to GND ...................................-0.3V to +6V
SUPB, LX, OUT to GND..........................................-0.3V to +14V
OUTB, NEGB, POSB to GND .....................-0.3V to (SUPB + 0.3V)
THR, DLP, MODE, FREQ, COMP, FB,
SS to GND.................................................-0.3V to VLDO + 0.3V
PGND to GND .....................................................-0.3V to + 0.3V
SRC to GND .........................................................-0.3V to + 30V
GON, DRN to GND ......................................-0.3V to VSRC + 0.3V
GON RMS Current Rating................................................± 50mA
OUTB RMS Current Rating ..............................................± 60mA
LX RMS Current Rating .........................................................1.6A
Continuous Power Dissipation (TA = +70°C)
24-Pin, 4mm x 4mm Thin QFN
(derate 16.9mW/°C above +70°C)...........................1349.1mW
Operating Temperature Range .........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ...........................-65°C to +160°C
Lead Temperature (soldering, 10s) .................................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating onditions for extended periods may affect device reliability.
