General Description
MAX9130 General Description
The MAX9130 is a single low-voltage differential signaling (LVDS) line receiver ideal for applications requiring high data rates, low power, and low noise. The device is guaranteed to receive data at speeds up to 500Mbps (250MHz).
The MAX9130 accepts an LVDS differential input and translates it to an LVTTL/LVCMOS output. The fail-safe feature sets the output high when the inputs are undriven and open, terminated, or shorted. The device supports a wide common-mode input range, allowing a ground potential difference and common-mode noise between the driver and the receiver.
The MAX9130 conforms to the ANSI/TIA/EIA-644 LVDS standard. The MAX9130 operates from a single +3.3V supply, and is specified for operation from -40°C to +85°C. It is available in a space-saving 6-pin SC70 package. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers. Refer to the MAX9115 for a lower speed (200Mbps) single LVDS line receiver in SC70.
MAX9130 Maximum Ratings
VCC to GND.....................................................................-0.3V to +4.0V
IN+, IN- to GND...............................................................-0.3V to +4.0V
OUT to GND .........................................................-0.3V to (VCC + 0.3V)
Continuous Power Dissipation (TA = +70°C)
6-Pin SC70 (derate 3.1mW/°C above +70°C)........................245 mW
Output Short to GND (OUT) (Note 1).................................................1s
Storage Temperature Range ..................................-65°C to +150°C
Maximum Junction Temperature .............................................+150°C
Operating Temperature Range .................................-40°C to +85°C
ESD Protection
Human Body Model (IN+, IN-) ......................................................±6kV
Lead Temperature (soldering, 10s) .........................................+300°C
IN+, IN- to GND...............................................................-0.3V to +4.0V
OUT to GND .........................................................-0.3V to (VCC + 0.3V)
Continuous Power Dissipation (TA = +70°C)
6-Pin SC70 (derate 3.1mW/°C above +70°C)........................245 mW
Output Short to GND (OUT) (Note 1).................................................1s
Storage Temperature Range ..................................-65°C to +150°C
Maximum Junction Temperature .............................................+150°C
Operating Temperature Range .................................-40°C to +85°C
ESD Protection
Human Body Model (IN+, IN-) ......................................................±6kV
Lead Temperature (soldering, 10s) .........................................+300°C
MAX9130 Features
·Space-Saving SC70 Package (50% Smaller than SOT23)
·Guaranteed 500Mbps Data Rate
·Low 250ps (max) Pulse Skew
·High-Impedance LVDS Inputs When Powered Off
·Allow Hot Swapping
·Conforms to ANSI TIA/EIA-644 LVDS Standard
·Single +3.3V Supply
·Fail-Safe Circuit Sets Output High for Undriven
·Inputs (Open, Terminated, or Shorted)
·Low 150µA (typ) Supply Current in Fail-Safe Mode
·Guaranteed 500Mbps Data Rate
·Low 250ps (max) Pulse Skew
·High-Impedance LVDS Inputs When Powered Off
·Allow Hot Swapping
·Conforms to ANSI TIA/EIA-644 LVDS Standard
·Single +3.3V Supply
·Fail-Safe Circuit Sets Output High for Undriven
·Inputs (Open, Terminated, or Shorted)
·Low 150µA (typ) Supply Current in Fail-Safe Mode
MAX9130 Typical Application
·Clock Distribution
·Cellular Phone Base Stations
·Digital Cross-Connects
·Network Switches/Routers
·DSLAMs
·Cellular Phone Base Stations
·Digital Cross-Connects
·Network Switches/Routers
·DSLAMs

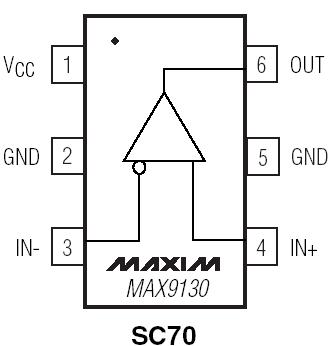

MAX9130 Connection Diagram
MAX9130
