General Description
MAX9201 General Description
The MAX9201/MAX9202/MAX9203 high-speed, lowpower, quad/dual/single comparators feature TTL logic outputs with active internal pullups. Fast propagation delay (7ns typ at 5mV overdrive) makes these devices ideal for fast A/D converters and sampling circuits, line receivers, V/F converters, and many other data-discrimination, signal restoration applications.
All comparators can be powered from separate analog and digital power supplies or from a single combined supply voltage. The analog input common-mode range includes the negative rail, allowing ground sensing when powered from a single supply. The MAX9201/ MAX9202/MAX9203 consume only 9mW per comparator when powered from a +5V supply.
The MAX9202/MAX9203 feature output latches with TTL compatible inputs. The comparator output states are held when the latch inputs are driven low. The MAX9201 provides all the same features as the MAX9202/MAX9203 with the exception of the latches. The MAX9201/MAX9202/MAX9203 are lower power and lower cost upgrades to the MAX901/MAX902/MAX903 offering a 50% power savings and smaller packaging.
MAX9201 Maximum Ratings
Analog Supply Voltage (VCC - VEE) .......................................+12V
Digital Supply Voltage (VDD) ..................................................+7V
Differential Input Voltage...................(VEE - 0.3V) to (VCC + 0.3V)
Common Mode Input Voltage.............(VEE - 0.3V) to (VCC + 0.3V)
Latch Input Voltage
(MAX9202/MAX9203 only) ..........................-0.3V to (VDD + 0.3V)
Output Short-Circuit Duration
To GND ......................................................................Continuous
To VDD .................................................................................1min
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT23-8 (derate 9.1mW/°C above +70°C) ...727mW/°C
8-Pin SO (derate 5.9mW/°C above +70°C).............471mW/°C
14-Pin TSSOP (derate 9.1mW/°C above +70°C) ....727mW/°C
14-Pin SO (derate 8.3mW/°C above +70°C)...........667mW/°C
16-Pin TSSOP (derate 9.4mW/°C above +70°C) ....755mW/°C
16-Pin SO (derate 8.7mW/°C above +70°C)...........696mW/°C
Operating Temperature Range .........................-45°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Digital Supply Voltage (VDD) ..................................................+7V
Differential Input Voltage...................(VEE - 0.3V) to (VCC + 0.3V)
Common Mode Input Voltage.............(VEE - 0.3V) to (VCC + 0.3V)
Latch Input Voltage
(MAX9202/MAX9203 only) ..........................-0.3V to (VDD + 0.3V)
Output Short-Circuit Duration
To GND ......................................................................Continuous
To VDD .................................................................................1min
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT23-8 (derate 9.1mW/°C above +70°C) ...727mW/°C
8-Pin SO (derate 5.9mW/°C above +70°C).............471mW/°C
14-Pin TSSOP (derate 9.1mW/°C above +70°C) ....727mW/°C
14-Pin SO (derate 8.3mW/°C above +70°C)...........667mW/°C
16-Pin TSSOP (derate 9.4mW/°C above +70°C) ....755mW/°C
16-Pin SO (derate 8.7mW/°C above +70°C)...........696mW/°C
Operating Temperature Range .........................-45°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
MAX9201 Features
* Fast 7ns Propagation Delay
* Low 9mW/Comparator Power Consumption
* Separate Analog and Digital Supplies
* Flexible Analog Supply: +5V to +10V or ±5V
* Input Voltage Range Includes Negative Supply Rail
* TTL-Compatible Outputs
* TTL-Compatible Latch Inputs (MAX9202/MAX9203)
* Available in Space-Saving Packages
8-Pin SOT23 (MAX9203)
14-Pin TSSOP (MAX9202)
16-Pin TSSOP (MAX9201)
* Low 9mW/Comparator Power Consumption
* Separate Analog and Digital Supplies
* Flexible Analog Supply: +5V to +10V or ±5V
* Input Voltage Range Includes Negative Supply Rail
* TTL-Compatible Outputs
* TTL-Compatible Latch Inputs (MAX9202/MAX9203)
* Available in Space-Saving Packages
8-Pin SOT23 (MAX9203)
14-Pin TSSOP (MAX9202)
16-Pin TSSOP (MAX9201)
MAX9201 Typical Application
High-Speed A/D
Converters
High-Speed V/F
Converters
Line Receivers
High-Speed Signal
Squaring/Restoration
Threshold Detectors
Input Trigger Circuitry
High-Speed Data
Sampling
PWM Circuits
Converters
High-Speed V/F
Converters
Line Receivers
High-Speed Signal
Squaring/Restoration
Threshold Detectors
Input Trigger Circuitry
High-Speed Data
Sampling
PWM Circuits

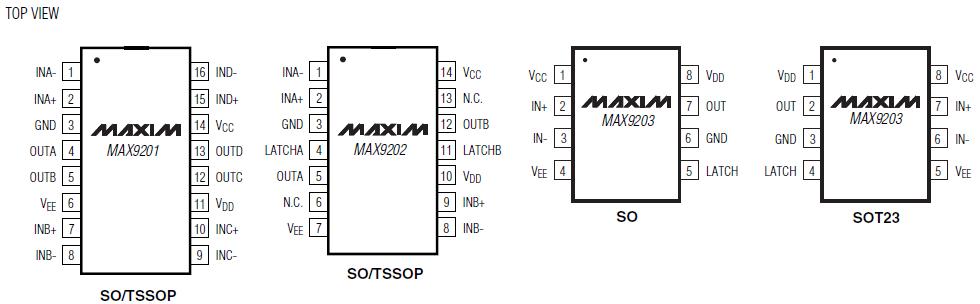

MAX9201 Connection Diagram
MAX9201
