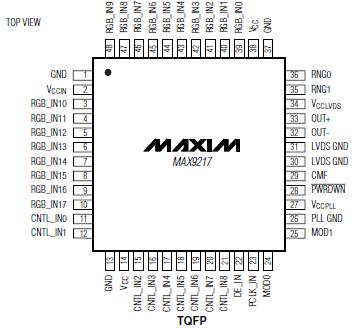

MAX9217

V_CC_ to _GND........................................................-0.5V to +4.0V
Any Ground to Any Ground.....................................-0.5V to +0.5V
OUT+, OUT- to LVDS GND ......................................-0.5V to +4.0V
OUT+, OUT- Short Circuit to LVDS GND
  or VCCLVDS..............................................................Continuous
OUT+, OUT- Short Through 0.125F (or smaller),
   25V Series Capacitor...........................................-0.5V to +16V
RGB_IN[17:0], CNTL_IN[8:0], DE_IN,
   RNG0, RNG1, MOD0, MOD1, PCLK_IN,
   PWRDWN, CMF to GND..........................-0.5V to (VCCIN + 0.5V)
Continuous Power Dissipation (T_A = +70°C)
   48-Lead TQFP (derate 20.8mW/°C above +70°C) ....1667mW
   48-Lead Thin QFN (derate 37mW/°C above +70°C) .2963mW
ESD Protection
   Human Body Model (R_D = 1.5k, C_S = 100pF)
   All Pins to GND.................................................................±2kV
ISO 10605 (R_D = 2k, C_S = 330pF)
   Contact Discharge (OUT+, OUT-) to GND.......................±10kV
   Air Discharge (OUT+, OUT-) to GND...............................±30kV
Storage Temperature Range .........................-65°C to +150°C
Junction Temperature....................................................+150°C
Lead Temperature (soldering, 10s) ..............................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
