Part Number: MAX9320
Description: The MAX9320/MAX9320A are low-skew, 1-to-2 differen-tial drivers designed for clock and data distributi...
- Table of contents:
MAX9320
-
Suppliers
DataSheet
General Description
MAX9320 General Description
The MAX9320/MAX9320A are low-skew, 1-to-2 differen-tial drivers designed for clock and data distribution. The input is reproduced at two differential outputs. The dif-ferential input can be adapted to accept single-ended inputs by applying an external reference voltage.
The MAX9320/MAX9320A feature ultra-low propagation delay (208ps), part-to-part skew (20ps), and output-to-output skew (6ps) with 30mA maximum supply current,making these devices ideal for clock distribution. For interfacing to differential HSTL and LVPECL signals,these devices operate over a +2.25V to +3.8V supply range, allowing high-performance clock or data distrib-ution in systems with a nominal +2.5V or +3.3V supply.For differential LVECL operation, these devices operate from a -2.25V to -3.8V supply.
The pinout is the only difference between the MAX9320 and MAX9320A. Multiple pinouts are provided to simplify routing across a backplane to either side of a double-sided board.
These devices are offered in space-saving 8-pin SOT23*and industry-standard TSSOP* and SO packages.
MAX9320 Maximum Ratings
VCCto VEE..........................................................................+4.1V
D or D ..................................................VEE- 0.3V to VCC+ 0.3V
D to D .................................................................................±3.0V
Continuous Output Current.................................................50mA
Surge Output Current........................................................100mA
Junction-to-Ambient Thermal Resistance in Still Air
8-Pin SOT23.............................................................+112°C/W
8-Pin TSSOP............................................................+221°C/W
8-Pin SO...................................................................+170°C/W
Junction-to-Ambient Thermal Resistance with 500
LFPM Airflow
8-Pin SOT23...............................................................+78°C/W
8-Pin TSSOP............................................................+155°C/W
8-Pin SO.....................................................................+99°C/W
Junction-to-Case Thermal Resistance
8-Pin SOT23...............................................................+80°C/W
8-Pin TSSOP..............................................................+39°C/W
8-Pin SO.....................................................................+40°C/W
Operating Temperature Range...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range.............................-65°C to +150°C
ESD Protection
Human Body Model (D, D, Q_, Q _).................................>2kV
Soldering Temperature (10s)...........................................+300°C
D or D ..................................................VEE- 0.3V to VCC+ 0.3V
D to D .................................................................................±3.0V
Continuous Output Current.................................................50mA
Surge Output Current........................................................100mA
Junction-to-Ambient Thermal Resistance in Still Air
8-Pin SOT23.............................................................+112°C/W
8-Pin TSSOP............................................................+221°C/W
8-Pin SO...................................................................+170°C/W
Junction-to-Ambient Thermal Resistance with 500
LFPM Airflow
8-Pin SOT23...............................................................+78°C/W
8-Pin TSSOP............................................................+155°C/W
8-Pin SO.....................................................................+99°C/W
Junction-to-Case Thermal Resistance
8-Pin SOT23...............................................................+80°C/W
8-Pin TSSOP..............................................................+39°C/W
8-Pin SO.....................................................................+40°C/W
Operating Temperature Range...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range.............................-65°C to +150°C
ESD Protection
Human Body Model (D, D, Q_, Q _).................................>2kV
Soldering Temperature (10s)...........................................+300°C
MAX9320 Features
Improved Second Source of the MC10LVEP11 (MAX9320)
+2.25V to +3.8V Differential HSTL/LVPECL Operation
-2.25V to -3.8V LVECL Operation
Low 22mA (typ) Supply Current
20ps (typ) Part-to-Part Skew
6ps (typ) Output-to-Output Skew
208ps (typ) Propagation Delay
Minimum 300mV Output at 3GHz
Outputs Low for Open Input
ESD Protection >2kV (Human Body Model)
Available in Thermally Enhanced Exposed-Pad SO Package
+2.25V to +3.8V Differential HSTL/LVPECL Operation
-2.25V to -3.8V LVECL Operation
Low 22mA (typ) Supply Current
20ps (typ) Part-to-Part Skew
6ps (typ) Output-to-Output Skew
208ps (typ) Propagation Delay
Minimum 300mV Output at 3GHz
Outputs Low for Open Input
ESD Protection >2kV (Human Body Model)
Available in Thermally Enhanced Exposed-Pad SO Package
MAX9320 Typical Application
Precision Clock Distribution
Low-Jitter Data Repeater
Protection Switching
Low-Jitter Data Repeater
Protection Switching

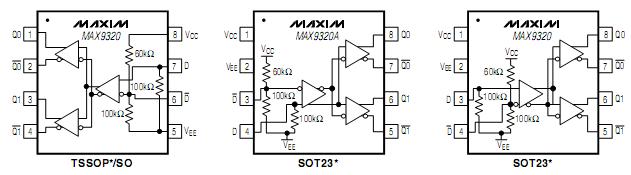

MAX9320 Connection Diagram
MAX9320
