General Description
MAX9376 General Description
The MAX9376 is a fully differential, high-speed, LVDS/anything-to-LVPECL/LVDS dual translator designed for signal rates up to 2GHz. One channel is LVDS/anything-to-LVPECL translator and the other channel is LVDS/anything-to-LVDS translator. The AX9376's extremely low propagation delay and high peed make it ideal for various high-speed network outing and backplane applications.
The MAX9376 accepts any differential input signal within he supply rails and with minimum amplitude of 00mV. Inputs are fully compatible with the LVDS, VPECL, HSTL, and CML differential signaling standards. VPECL outputs have sufficient current to drive 0 transmission lines. LVDS outputs conform to the NSI EIA/TIA-644 LVDS standard.
The MAX9376 is available in a 10-pin MAX package nd operates from a single +3.3V supply over the -40°C o +85°C temperature range.
MAX9376 Maximum Ratings
VCCo GND........................................................-0.3V to +4.1V
Inputs (IN_, IN_) ...................................-0.3V to (VCC + 0.3V)
IN to IN .........................................................................±3.0V
Continuous Output Current ...........................................50mA
Surge Output Current ..................................................100mA
Continuous Power Dissipation (TA = +70°C)
10-Pin MAX (derate 6.9mW/°C above +70°C) .........155mW
JA in Still Air ..........................................................+144°C/W
Junction Temperature..................................................+150°C
Storage Temperature Range .......................-65°C to +150°C
ESD Protectio
Human Body Model (IN_, IN_, OUT_, OUT_) .....................2kV
Soldering Temperature (10s) .......................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. hese are stress ratings only, and functional peration of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to bsolute maximum rating conditions for extended periods may affect device reliability.
MAX9376 Features
Guaranteed 2GHz Switching Frequency
Accepts LVDS/LVPECL/Anything Inputs
421ps (typ) Propagation Delays
30ps (max) Pulse Skew
2psRMS (max) Random Jitter
Minimum 100mV Differential Input to Guarantee AC Specifications
Temperature-Compensated LVPECL Output
+3.0V to +3.6V Power-Supply Operating Range
>2kV ESD Protection (Human Body Model)
Accepts LVDS/LVPECL/Anything Inputs
421ps (typ) Propagation Delays
30ps (max) Pulse Skew
2psRMS (max) Random Jitter
Minimum 100mV Differential Input to Guarantee AC Specifications
Temperature-Compensated LVPECL Output
+3.0V to +3.6V Power-Supply Operating Range
>2kV ESD Protection (Human Body Model)
MAX9376 Typical Application
Backplane Logic Standard Translation
LVDS-to-LVPECL, LVPECL-to-LVDS
Up/Downconverters
LANs
WANs
DSLAMs
DLCs
LVDS-to-LVPECL, LVPECL-to-LVDS
Up/Downconverters
LANs
WANs
DSLAMs
DLCs

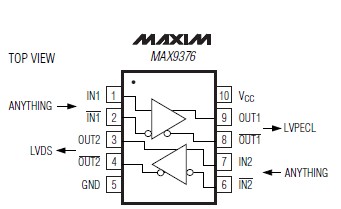

MAX9376 Connection Diagram
