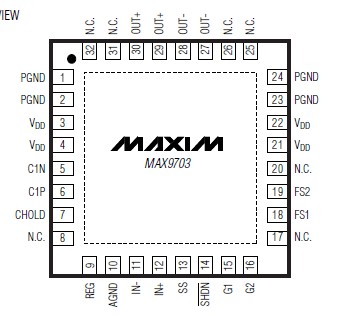

MAX9703

(All voltages referenced to GND.)
VDD to PGND, AGND .............................................................30V
OUTR_, OUTL_, C1N..................................-0.3V to (VDD + 0.3V)
C1P............................................(VDD - 0.3V) to (CHOLD + 0.3V)
CHOLD........................................................(VDD - 0.3V) to +40V
All Other Pins to GND.............................................-0.3V to +12V
Duration of OUTR_/OUTL_
Short Circuit to GND, VDD .....................................................10s
Continuous Input Current (VDD, PGND) ...............................1.6A
Continuous Input Current.....................................................0.8A
Continuous Input Current (all other pins)........................±20mA
Continuous Power Dissipation (TA = +70°C)
MAX9703 32-Pin TQFN (derate 21.3mW/°C
above +70°C)............................................................1702.1mW
MAX9704 32-Pin TQFN (derate 33.3mW/°C
above +70°C)............................................................2666.7mW
Junction Temperature......................................................+150°C
Operating Temperature Range ..........................-40°C to +85°C
Storage Temperature Range ............................65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
