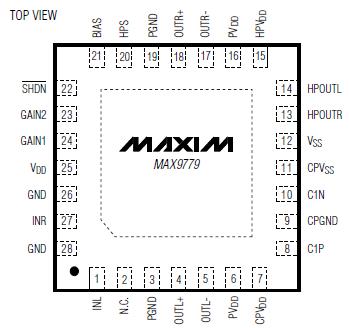

MAX9779

Supply Voltage (V_DD, PV_DD, HPV_DD, CPV_DD to GND)..........+6V
GND to PGND..................................................................±0.3V
CPVSS, C1N, VSS to GND .......................-6.0V to (GND + 0.3V)
HPOUT_ to GND................................................................±3V
Any Other Pin .........................................-0.3V to (V_DD + 0.3V)
Duration of OUT_ _ Short Circuit to GND or PV_DD...Continuous
Duration of OUT_+ Short Circuit to OUT_- ............Continuous
Duration of HPOUT_ Short Circuit to GND,
    V_SS or HPVDD....................................................Continuous
Continuous Current (PV_DD, OUT_ _, PGND) ....................1.7A
Continuous Current (CPV_DD, C1N, C1P, CPV_SS, V_SS, HPV_DD,
    HPOUT_)..................................................................850mA
Continuous Input Current (all other pins) ...................±20mA
Continuous Power Dissipation (T_A = +70°C)
    28-Pin Thin QFN (derate 20.8mW/°C above +70°C) ..1667mW
Junction Temperature.................................................+150°C
Operating Temperature Range ....................-40°C to +85°C
Storage Temperature Range .....................-65°C to +150°C
Lead Temperature (soldering, 10s) ...........................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
