Part Number: MB15C03



MFG: Fujitsu

Package Cooled: SSOP-16

D/C: 04+

Description: The Fujitsu MB15C03 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a prescaler. ...


Urgent Purchase

MB15C03 General Description


The Fujitsu MB15C03 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a prescaler. A 64/ 65 division is available for the prescaler that enables pulse swallow operation.

This operates with a supply voltage of 1.0 V (min.).

MB15C03 is suitable for mobile communications, such as paging systems.

MB15C03 Maximum Ratings

Parameter

Symbol

Rating

Unit

Remark

Min.

Max.

Power supply voltage

VDD

GND0.5

+2.0

V

VP

GND0.5

+5.0

V

Input voltage

VIN

GND0.5

VDD +0.5

V

Output voltage

VOUT

GND 0.5

VDD +0.5

V

VOUTP

GND 0.5

VP +0.5

V

Output current

VOUT

10

+10

mA

Operating temperature

Ta

20

+60

Storage temperature

Tstg

40

+125



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB15C03 Features

• Frequency operation        90 MHz @VDD = 1.0 to 1.5V
                                          120 MHz @VDD = 1.2 to 1.5V
• Separate power supply : VDD = 1.0 to 1.5 V (for overall system)
                                           VP = 2.0V to 3.5V (for a charge pump)
• Power saving function
• Pulse swallow function: 64/65
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
    - Binary 6-bit swallow counter: 0 to 63
    - Binary 12-bit programmable counter: 5 to 4,095
• Wide operating temperature: Ta = 20 to +60
• Plastic 16-pin SSOP package (FPT-16P-M05)

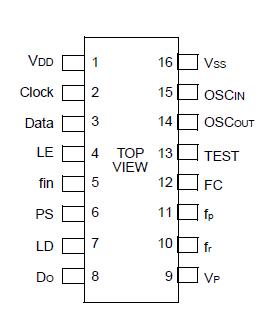

MB15C03 Connection Diagram

MB15C03 Connection Diagram

MB15C03 datasheet

MB15C03
PDF/DataSheet Download

  • Datasheet: MB15C03
  • File Size: 277715 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
