Part Number: MB15C101
Description: The Fujitsu MB15C101 is an exclusive Intermediate Frequency (IF) band Phase Locked Loop (PLL) frequenc...
- Table of contents:
MB15C101
-
Suppliers
DataSheet
General Description
MB15C101 General Description
The Fujitsu MB15C101 is an exclusive Intermediate Frequency (IF) band Phase Locked Loop (PLL) frequency synthesizer with pulse swallow operation. The reference divider and comparison divider have fixed divide ratios, so that it is not required to set the divide ratios by a microcontroller externally.
It operates with a supply voltage of 3.0 V typ. and dissipates 1.0 mA typ.(270MHz) of current realized through the use of Fujitsu's CMOS technology.
The MB15C101 is ideally suitable for PHS systems.
MB15C101 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit | |
|
Min. |
Max. | |||
|
Power supply voltage |
VCC |
0.5 |
+4.0 |
V |
|
Input voltage |
VI |
0.5 |
VCC +0.5 |
V |
|
Output voltage |
VOUT |
0.5 |
VCC +0.5 |
V |
|
Output current |
IOUT |
0 |
+5 |
mA |
|
Storage temperature |
TSTG |
55 |
+125 |
|
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15C101 Features
• Low power supply current: ICC = 1.0 mA typ. (VCC = 3 V, 270MHz)
• Pulse swallow function; Prescaler: 16/17
• Setting frequency (Selectable by Div input.)
fosc = 19.2 MHz, fIF = 233.15 MHz (Div = "H")
fosc = 19.2 MHz, fIF = 259.20 MHz (Div = "L")
• Lock detector
• Low power supply voltage: VCC = 2.4 V min.
• Wide operating temperature: Ta = 40 to +85
• Pulse swallow function; Prescaler: 16/17
• Setting frequency (Selectable by Div input.)
fosc = 19.2 MHz, fIF = 233.15 MHz (Div = "H")
fosc = 19.2 MHz, fIF = 259.20 MHz (Div = "L")
• Lock detector
• Low power supply voltage: VCC = 2.4 V min.
• Wide operating temperature: Ta = 40 to +85

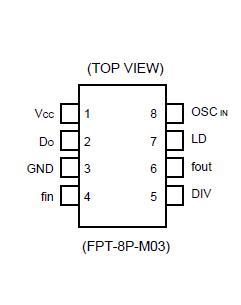

MB15C101 Connection Diagram
MB15C101
