Part Number: MB15E03



MFG: FUJITSU

Package Cooled: SOP

D/C: 03+

Description: The Fujitsu MB15E03 is serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler. A 64/65 or ...


Urgent Purchase

MB15E03 General Description


The Fujitsu MB15E03 is serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler. A 64/65 or a 128/129 can be selected for the prescaler that enables pulse swallow operation.

The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 3.5 mA typ. This operates with a supply voltage of 3.0 V (typ.).

Furthermore, a super charger circuit is included to get a fast tuning as well as low noise performance. As a result of this, MB15E03 is ideally suitable for digital mobile communications, such as GSM (Global System for Mobile Communications).

MB15E03 Maximum Ratings

Parameter

Symbol

Rating

Unit

Remark

Power supply voltage

VCC

0.5 to +4.0

V

VP

VCC to +6.0

V

Input voltage

VI

0.5 to VCC +0.5

V

Output voltage

VO

0.5 to VCC +0.5

V



Storage temperature

Tstg

55 to +125



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB15E03 Features

• High frequency operation: 1.2 GHz max
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 3.5 mA typ. (VCC = 3 V)
• Power saving function : IPS = 0.1 A typ.
• Pulse swallow function: 64/65 or 128/129
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
   - Binary 7-bit swallow counter: 0 to 127
   - Binary 11-bit programmable counter: 5 to 2,047
• Wide operating temperature: Ta = 40 to 85
 • Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pin BCC package (LCC-16P-M02)

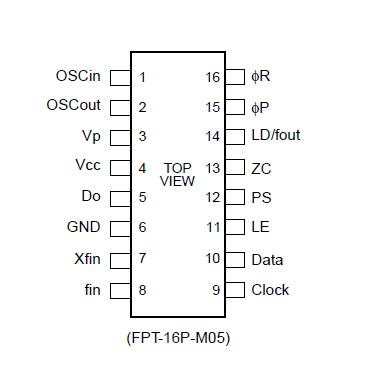

MB15E03 Connection Diagram

MB15E03 Connection Diagram
