Purchase MB15E07, In-stock MB15E07 From SeekIC.
MFG:FUJ Package Cooled:TSSOP
Part Number: MB15E07
MFG: FUJ
Package Cooled: TSSOP
Description: The Fujitsu MB15E07 is serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.5 GHz presc...
- Table of contents:
MB15E07
-
Suppliers
DataSheet
General Description
MB15E07 General Description
The Fujitsu MB15E07 is serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.5 GHz prescaler. A 32/33 or a 64/65 can be selected for the prescaler that enables pulse swallow operation.
The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 8 mA typ. This operates with a supply voltage of 3.0 V (typ.)
Furthermore, a super charger circuit is included to get a fast tuning as well as low noise performance. As a result of this, MB15E07 is ideally suitable for digital mobile communications, such as GSM (Global System for Mobile Communications).
MB15E07 Maximum Ratings
| Parameter |
Symbol |
Rating |
Unit |
Remark |
|
Power supply voltage |
VCC |
0.5 to +4.0 |
V |
|
|
VP |
VCC to +6.0 |
V |
||
|
Input voltage |
VI |
0.5 to VCC +0.5 |
V |
|
|
Output voltage |
VO |
0.5 to VCC +0.5 |
V |
|
|
Storage temperature |
Tstg |
55 to +125 |
|
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability
MB15E07 Features
• High frequency operation: 2.5 GHz max (@ P= 64/65)
1.8 GHz max (@P = 32/33)
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 8.0 A typ. (VCC = 3 V)
• Power saving function : IPS = 0.1mA typ.
• Pulse swallow function: 32/33 or 64/65
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 5 to 2,047
• Wide operating temperature: Ta = 40 to 85
• Plastic 16-pin SSOP package (FPT-16P-M05)
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 5 to 2,047
• Wide operating temperature: Ta = 40 to 85
• Plastic 16-pin SSOP package (FPT-16P-M05)

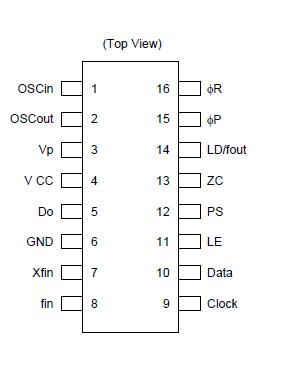

MB15E07 Connection Diagram
MB15E07
