Part Number: MB15E07L



MFG: FUJITSU

Package Cooled: TSSOP16



Description: The Fujitsu MB15E07L is serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.5 GHz pres...


Urgent Purchase

MB15E07L General Description


The Fujitsu MB15E07L is serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.5 GHz prescaler. A 32/33 or a 64/65 can be selected for the prescaler that enables pulse swallow operation.

The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 4.5 mA typ. This operates with a supply voltage of 3.0 V (typ.)

Furthermore, a super charger circuit is included to get a fast tuning as well as low noise performance. As a result of this, MB15E07L is ideally suitable for digital mobile communications, such as GSM (Global System for Mobile Communications).

MB15E07L Maximum Ratings

Parameter

Symbol

Rating

Unit

Remark

Min.

Max.

Power supply voltage

VCC

0.5

+4.0

V

VP

VCC

+6.0

V

Input voltage

VI

0.5

VCC +0.5

V

Output voltage

VO

-0.5

VCC +0.5

V

Output current

IO

-10

+10

mA

Except DO output

Ido

25

+25

mA

DO output

Storage temperature

Tstg

-55

+125



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB15E07L Features

• High frequency operation: 2.5 GHz max. (@ P = 64/65)
                                            2.0 GHz max. (@ P = 32/33)
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current: ICC = 4.5 mA typ. (VCC = 3 V)
• Power saving function: IPS = 0.1A typ. (VCC = 3 V)
• Pulse swallow function: 32/33 or 64/65
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
   - Binary 7-bit swallow counter: 0 to 127
   - Binary 11-bit programmable counter: 5 to 2,047
• Wide operating temperature: Ta = 40 to +85
• Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pads BCC package (LCC-16P-M02)

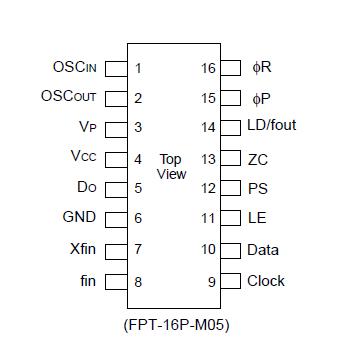

MB15E07L Connection Diagram

MB15E07L Connection Diagram
