Purchase MB15F03, In-stock MB15F03 From SeekIC.
MFG:FUJ D/C:04+
Part Number: MB15F03
MFG: FUJ
D/C: 04+
Description: The Fujitsu MB15F03 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0GHz and ...
- Table of contents:
MB15F03
-
Suppliers
DataSheet
General Description
MB15F03 General Description
The Fujitsu MB15F03 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0GHz and a 500MHz prescalers. A 64/65 or a 128/129 for the 2.0GHz prescaler, and a 16/17 or a 32/33 for 500MHz prescaler can be selected that enables pulse swallow operation.
The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 9.0mA typ. at a supply voltage of 3.0V.
Furthermore, a super charger circuit is included to provide a fast tuning as well as low noise performance. As a result of this, MB15F03 is ideally suitable for digital mobile communications, such as PHS(Personal Handy Phone System), PCN (Personal Communication Network) and PCS(Personal Communication Service).
MB15F03 Maximum Ratings
| Parameter |
Symbol |
Rating |
Unit |
Remark |
|
Power supply voltage |
VCC |
0.5 to +4.0 |
V |
|
|
Input voltage |
VI |
0.5 to VCC +0.5 |
V |
|
|
Output voltage |
VO |
0.5 to VCC +0.5 |
V |
|
|
Storage temperature |
TSTG |
55 to +125 |
°C |
|
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15F03 Features
• High frequency operation RF synthesizer : 2.0GHz max.
IF synthesizer : 500MHz max.
• Low power supply voltage: VCC = 2.7 to 3.6V
• Very Low power supply current : ICC = 9.0 mA typ. (Vcc = 3V)
• Power saving function : IPS1 = IPS2 = 10A max.
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Wide operating temperature: Ta =-40 to 85°C
• Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pin BCC package (LCC-16P-M03)
IF synthesizer : 500MHz max.
• Low power supply voltage: VCC = 2.7 to 3.6V
• Very Low power supply current : ICC = 9.0 mA typ. (Vcc = 3V)
• Power saving function : IPS1 = IPS2 = 10A max.
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Wide operating temperature: Ta =-40 to 85°C
• Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pin BCC package (LCC-16P-M03)

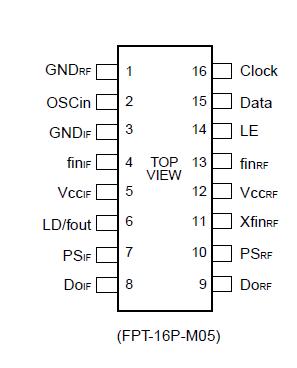

MB15F03 Connection Diagram
MB15F03
PDF/DataSheet Download
- Datasheet: MB15F03
- File Size: 197425 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
