Part Number: MB15F03L
Description: The Fujitsu MB15F03L is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1800MHz an...
- Table of contents:
MB15F03L
-
Suppliers
DataSheet
General Description
MB15F03L General Description
The Fujitsu MB15F03L is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1800MHz and a 250MHz prescalers. A 64/65 or a 128/129 for the 1800MHz prescaler, and a 16/17 or a 32/33 for 250MHz prescaler can be selected that enables pulse swallow operation.
The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 5.0mA typ. at a supply voltage of 3.0V.
Furthermore, a super charger circuit is included to provide a fast tuning as well as low noise performance. As a result of this, MB15F03L is ideally suitable for digital mobile communications, such as PHS(Personal Handy Phone System), PCN (Personal Communication Network) and PCS(Personal Communication Service).
MB15F03L Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
Remark |
|
Power supply voltage |
VCC |
0.5 to +4.0 |
V |
|
|
Input voltage |
VI |
0.5 to VCC +0.5 |
V |
|
|
Output voltage |
VO |
0.5 to VCC +0.5 |
V |
|
|
Output current |
IO |
10 to +10 |
mA |
Except Do |
|
Ido |
25 to +25 |
mA |
Do output | |
|
Storage temperature |
TSTG |
55 to +125 |
°C |
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15F03L Features
• High frequency operation RF synthesizer: 1800MHz max. / IF synthesizer: 250MHz max.
• Low power supply voltage: VCC = 2.7 to 3.6V
• Very Low power supply current : ICC = 5.0 mA typ. (Vcc = 3V)
• Power saving function : Supply current at power saving mode Typ.0.1A (Vcc=3V), Max.10A (IPS1=IPS2)
• Dual modulus prescaler : 1800MHz prescaler(64/65,128/129) , 250MHz prescaler(16/17,32/33)
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Onchip phase control for phase comparator
• Wide operating temperature: Ta = -40 to 85°C
• Low power supply voltage: VCC = 2.7 to 3.6V
• Very Low power supply current : ICC = 5.0 mA typ. (Vcc = 3V)
• Power saving function : Supply current at power saving mode Typ.0.1A (Vcc=3V), Max.10A (IPS1=IPS2)
• Dual modulus prescaler : 1800MHz prescaler(64/65,128/129) , 250MHz prescaler(16/17,32/33)
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Onchip phase control for phase comparator
• Wide operating temperature: Ta = -40 to 85°C

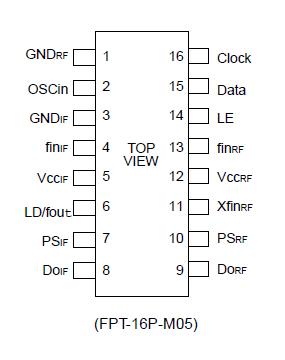

MB15F03L Connection Diagram
MB15F03L
PDF/DataSheet Download
- Datasheet: MB15F03L
- File Size: 279565 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
