Purchase MB15F04, In-stock MB15F04 From SeekIC.
MFG:FUJ D/C:04+
Part Number: MB15F04
MFG: FUJ
D/C: 04+
Description: The Fujitsu MB15F04 is a serial input Phase Locked Loop (PLL) frequency synthesizer with two 2.0GHz pr...
- Table of contents:
MB15F04
-
Suppliers
DataSheet
General Description
MB15F04 General Description
The Fujitsu MB15F04 is a serial input Phase Locked Loop (PLL) frequency synthesizer with two 2.0GHz prescalers.
A 64/65 or a 128/129 for both 2.0GHz prescalers can be selected that enables pulse swallow operation.
The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 11.0mA typ. at a supply voltage of 3.0V.
Furthermore, a super charger circuit is included to provide a fast tuning as well as low noise performance. As a result of this, MB15F04 is ideally suitable for digital mobile communications.
MB15F04 Maximum Ratings
| Parameter | Symbol | Rating | Unit | Remark |
| Power supply voltage | VCC | 0.5 to +4.0 | V |
|
| Input voltage | VI | 0.5 to VCC +0.5 | V |
|
| Output voltage | VO | 0.5 to VCC +0.5 | V |
|
| Output current | IO | 10 to +10 | mA |
|
| Storage temperature | TSTG | 55 to +125 | °C |
|
WARNING: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections of
this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
MB15F04 Features
• High frequency operation RX synthesizer : 2.0 GHz max.
TX synthesizer : 2.0 GHz max.
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 11.0 mA typ. (Vcc = 3V)
• Power saving function : IPSTX = IPSTX = 10 A max.
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Wide operating temperature: Ta =-40 to 85°C
TX synthesizer : 2.0 GHz max.
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 11.0 mA typ. (Vcc = 3V)
• Power saving function : IPSTX = IPSTX = 10 A max.
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
- Binary 7bit swallow counter: 0 to 127
- Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Wide operating temperature: Ta =-40 to 85°C

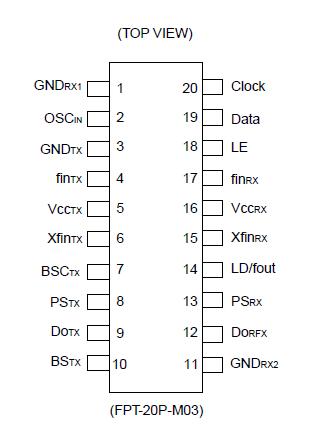

MB15F04 Connection Diagram
MB15F04
