General Description
MB15F07SL General Description
The Fujitsu MB15F07SL is a serial input Phase Locked Loop (PLL) frequency synthesizer with two 1100 MHz prescalers. The two 1100 MHz prescalers have a dual modulus division ratio of 128/129 or 64/65 enabling pulse swallowing operation.
The supply voltage range is between 2.4 V and 3.6 V. The MB15F07SL uses the latest BiCMOS process. As a result, the supply current is typically 5 mA at 2.7 V. A refined charge pump supplies a well-balanced output current of 1.5 mA or 6 mA. The charge pump current is selectable by serial data.
MB15F07SL is ideally suited for wireless mobile communications, such as GSM and PDC.
MB15F07SL Maximum Ratings
| Parameter | Symbol | Rating | Unit | Remark | |
| Min. | Max. | ||||
| Power supply voltage | VCC | 0.5 | +4.0 | V |
|
| Input voltage | VI | 0.5 | VCC +0.5 | V |
|
| Output voltage | VO | GND | VCC | V |
|
| Storage temperature | Tstg | 55 | +125 | °C |
|
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15F07SL Features
• High frequency operation: PLL 1, 2: 1100 MHz max
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current: ICC = 5.0 mA typ. (VCC = 2.7 V, Ta = +25°C, in PLL1, 2 locking state)
ICC = 5.5 A typ. (VCC = 3.0 V, Ta = +25°C, in PLL1, 2 locking state)
• Direct power saving function: Power supply current in power saving mode
Typ. 0.1 mA (VCC = 3.0 V, Ta = +25°C), Max. 10 mA (VCC = 3.0 V)
• Dual modulus prescaler: 1100 MHz prescaler (64/65, 128/129)
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to +85°C
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current: ICC = 5.0 mA typ. (VCC = 2.7 V, Ta = +25°C, in PLL1, 2 locking state)
ICC = 5.5 A typ. (VCC = 3.0 V, Ta = +25°C, in PLL1, 2 locking state)
• Direct power saving function: Power supply current in power saving mode
Typ. 0.1 mA (VCC = 3.0 V, Ta = +25°C), Max. 10 mA (VCC = 3.0 V)
• Dual modulus prescaler: 1100 MHz prescaler (64/65, 128/129)
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to +85°C

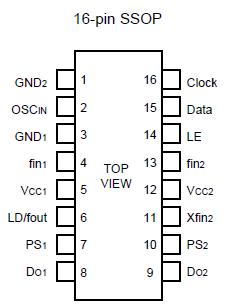

MB15F07SL Connection Diagram
MB15F07SL
PDF/DataSheet Download
- Datasheet: MB15F07SL
- File Size: 249912 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
