Purchase MB15F73UL, In-stock MB15F73UL From SeekIC.
MFG:FUJITSU
Part Number: MB15F73UL
MFG: FUJITSU
Description: The Fujitsu MB15F73UL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2250MHz a...
- Table of contents:
MB15F73UL
-
Suppliers
DataSheet
General Description
MB15F73UL General Description
The Fujitsu MB15F73UL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2250MHz and a 600MHz prescalers. A 64/65 or a 128/129 for the 2250MHz prescaler, and a 8/9 or a 16/17 for the 600MHz prescaler can be selected for the prescaler that enables pulse swallow operation.
The latest BiCMOS process is used, as a result a supply current is typically 3.2mA typ. at 2.7V. The supply voltage range is from 2.4V to 3.6V. A refined charge pump supplies well-balanced output current with 1.5mA and 6mA selectable by serial data. The data format is same as the previous one MB15F03SL, MB15F73SP. Fast locking is acheived for adopting the new circuit.
The new package(BCC20) decreases a mount area of MB15F73UL more than 30% comparing with the former BCC16(for dual PLL).
MB15F73UL is ideally suited for wireless mobile communications, such as GSM and CDMA.
MB15F73UL Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
Remark |
|
Power supply voltage |
VCC |
0.5 to +4.0 |
V |
|
|
Vp |
Vcc to +4.0 |
V | ||
|
Input voltage |
VI |
0.5 to VCC +0.5 |
V |
|
|
Output voltage |
VO |
GND to Vcc |
V |
LD/fout |
|
VDO |
GND to Vp |
V |
Do | |
|
Storage temperature |
Tstg |
55 to +125 |
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MB15F73UL Features
• High frequency operation: RF synthesizer : 2250MHz max
IF synthesizer : 600MHz max
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current : ICC = 3.2 mA typ. (VCC = Vp=2.7V, Ta=25, SW=0 in RF, IF locking state)
• Direct power saving function : Power supply current in power saving mode
Typ. 0.1 mA(Vcc=Vp=2.7V, Ta=25°C), Max. 10 mA(Vcc=Vp=2.7V)
• Dual modulus prescaler : 2250MHz prescaler(64/65 or 128/129) / 600MHz prescaler(8/9 or 16/17)
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• On-chip phase comparator for fast lock and low noise
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to 85
• Sireal data format compatible with MB15F03SL
IF synthesizer : 600MHz max
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current : ICC = 3.2 mA typ. (VCC = Vp=2.7V, Ta=25, SW=0 in RF, IF locking state)
• Direct power saving function : Power supply current in power saving mode
Typ. 0.1 mA(Vcc=Vp=2.7V, Ta=25°C), Max. 10 mA(Vcc=Vp=2.7V)
• Dual modulus prescaler : 2250MHz prescaler(64/65 or 128/129) / 600MHz prescaler(8/9 or 16/17)
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• On-chip phase comparator for fast lock and low noise
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to 85
• Sireal data format compatible with MB15F03SL

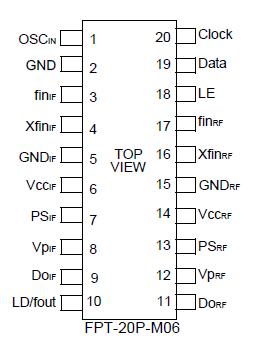

MB15F73UL Connection Diagram
MB15F73UL
PDF/DataSheet Download
- Datasheet: MB15F73UL
- File Size: 159256 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
- ·MB1005
- MCC [Micro Commercial Components]
- 10 Amp Single Phase Bridge Rectifier 50 to 1000 Volts
- 81141 KB
- ·MB1005-1010
- COMCHIP [Comchip Technology]
- High Current Bridge Rectifier
- 75301 KB
- ·MB101
- MCC [Micro Commercial Components]
- 10 Amp Single Phase Bridge Rectifier 50 to 1000 Volts
- 81141 KB
- ·MB1010
- MCC [Micro Commercial Components]
- 10 Amp Single Phase Bridge Rectifier 50 to 1000 Volts
- 81141 KB
- ·MB10101BAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB10101BBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB10101CAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB10101CBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
MB15F73UL Relative Products
MB15F73SP
The Fujitsu MB15F73SP is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2000 MHz prescaler and a 600 MHz prescaler. A 64/65 or a 128/129 for the 2000 MHz prescaler, and a 8/9 or a 16/17 for the 600 MHz prescaler can be selected for the p...
MB15F72UV
The Fujitsu MB15F72UV is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1300 MHz and a 350 MHz prescalers. A 64/65 or a 128/129 for the 1300 MHz prescaler, and a 8/9 or a 16/17 for the 350 MHz prescaler can be selected for the prescaler ...
MB15F72UL
The Fujitsu MB15F72UL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1300 MHz and a 350 MHz prescalers. A 64/65 or a 128/129 for the 1300 MHz prescaler, and a 8/9 or a 16/17 for the 350 MHz prescaler can be selected for the prescaler ...
MB15F72SP
The Fujitsu MB15F72SP is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1300 MHz and a 350 MHz prescalers. A 64/65 or a 128/129 for the 1300 MHz prescaler, and a 8/9 or a 16/17 for the 350 MHz prescaler can be selected for the prescaler ...
MB15F08SL
The Fujitsu MB15F08SL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2500 MHz and a 1100 MHz prescalers. The 2500 MHz prescaler, and 1100 MHz prescaler have a dual modulus division ratio of 32/33 or 64/65 and 16/17 or 32/33 enabling p...

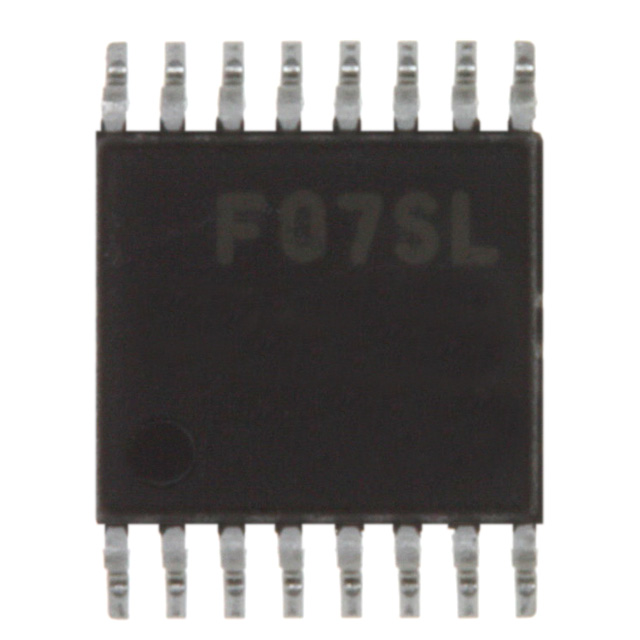

MB15F07SLPFV1-BND-6E1
