Part Number: MB2543
Description: The MB2543 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high ou...
- Table of contents:
MB2543
-
Suppliers
DataSheet
General Description
MB2543 General Description
The MB2543 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
The MB2543 dual octal registered transceiver contains two sets of D-type latches for temporary storage of data flowing in either direction. Separate Latch Enable (nLEAB, nLEBA) and Output Enable (nOEAB, nOEBA) inputs are provided for each register to permit independent control of data transfer in either direction. The outputs are guaranteed to sink 64mA.
MB2543 Maximum Ratings
|
SYMBOL |
PARAMETER |
CONDITIONS |
RATING |
UNIT |
|
VCC |
DC supply voltage |
|
0.5 to +7.0 |
V |
|
IIK |
DC input diode current |
VI < 0 |
18 |
mA |
|
VI |
DC input voltage3 |
|
1.2 to +7.0 |
V |
|
IOK |
DC output diode current |
VO < 0 |
50 |
mA |
|
VOUT |
DC output voltage3 |
output in Off or High state |
0.5 to +5.5 |
V |
|
IOUT |
DC output current |
output in Low state |
128 |
mA |
|
Tstg |
Storage temperature range |
|
65 to 150 |
°C |
1 . Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2 . The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3 . The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
MB2543 Features
• Two 8-bit octal transceivers with D-type latch
• Live insertation/extraction permitted
• Power-up 3-State
• Power-up reset
• Multiple VCC and GND pins minimize switching noise
• Back-to-back registers for storage
• Separate controls for data flow in each direction
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model
• Live insertation/extraction permitted
• Power-up 3-State
• Power-up reset
• Multiple VCC and GND pins minimize switching noise
• Back-to-back registers for storage
• Separate controls for data flow in each direction
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

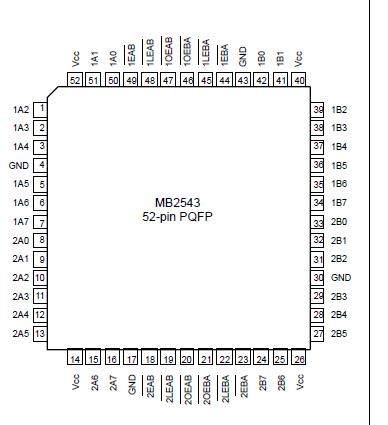

MB2543 Connection Diagram
MB2543
PDF/DataSheet Download
- Datasheet: MB2543
- File Size: 150349 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
