Part Number: MB2861
Description: The MB2861 bus transceiver provides high performance bus interface buffering for wide data/address paths of buses carry...
- Table of contents:
MB2861
-
Suppliers
DataSheet
General Description
MB2861 General Description
The MB2861 bus transceiver provides high performance bus interface buffering for wide data/address paths of buses carrying parity.
The MB2861 10-bit bus transceiver has NOR-ed transmit and receive output enables for maximum control flexibility.
MB2861 Maximum Ratings
|
SYMBOL |
PARAMETER |
CONDITIONS |
RATING |
UNIT |
|
VCC |
DC supply voltage |
|
0.5 to +7.0 |
V |
|
IIK |
DC input diode current |
VI < 0 |
18 |
mA |
|
VI |
DC input voltage3 |
|
1.2 to +7.0 |
V |
|
IOK |
DC output diode current |
VO < 0 |
50 |
mA |
|
VOUT |
DC output voltage3 |
output in Off or High state |
0.5 to +5.5 |
V |
|
IOUT |
DC output current |
output in Low state |
128 |
mA |
|
Tstg |
Storage temperature range |
|
65 to 150 |
°C |
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
MB2861 Features
• Provides high performance bus interface buffering for wide data/address paths or buses carrying parity
• Buffered control inputs for light loading, or increased fan-in as required with MOS microprocessors
• Output capability: +64mA/-32mA
• Power-up 3-State
• Live insertion/extraction permitted
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model
• Buffered control inputs for light loading, or increased fan-in as required with MOS microprocessors
• Output capability: +64mA/-32mA
• Power-up 3-State
• Live insertion/extraction permitted
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model

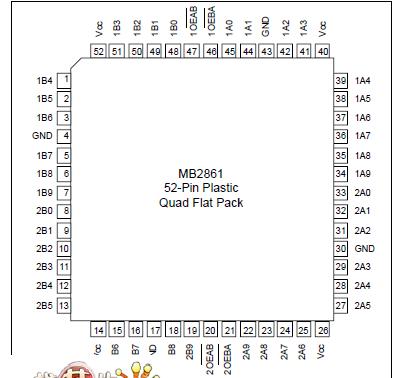

MB2861 Connection Diagram
MB2861
