Part Number: MB3759



MFG: FUJ

Package Cooled: CDIP



Description: The MB3759 is a control IC for constant-frequency pulse width modulated switching regulators.T...


Urgent Purchase

MB3759 General Description


The MB3759 is a control IC for constant-frequency pulse width modulated switching regulators.

The IC contains most of the functions required for switching regulator control circuits. This reduces both the component count and assembly work.

MB3759 Maximum Ratings

Parameter Symbol Condition Rating Unit
Min. Max.
Power supply voltage VCC - - 41 V
Collector output voltage VCE - - 41 V
Collector output current ICE - - 250 mA
Amplifier input voltage VI - - VCC + 0.3 V
Power dissipation Plastic DIP PD Ta +25°C - 1000 mW
Ceramic DIP Ta+25°C - 800
SOP * Ta+25°C - 620
Operating temperature TOP - 30 +85 °C
Storage temperature Tstg - 55 +125 °C
*: When mounted on a 4 cm square double-sided epoxy circuit board (1.5 mm thickness)
The ceramic circuit board is 3 cm x 4 cm (0.5 mm thickness)
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB3759 Features

• Drives a 200 mA load
• Can be set to push-pull or single-end operation
• Prevents double pulses
• Adjustable dead-time
• Error amplifier has wide common phase input range
• Built in a circuit to prevent misoperation due to low power supply voltage.
• Built in an internal 5 V reference voltage with superior voltage reduction characteristics

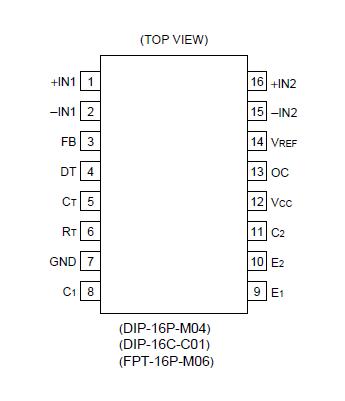

MB3759 Connection Diagram

MB3759 Connection Diagram
