Part Number: MB3825A



MFG: FUJ

Package Cooled: QFP

D/C: 00+

Description: The MB3825A is a pulse width modulation (PWM) type 6-channel DC/DC converter IC with synchronous recti...


Urgent Purchase

MB3825A General Description


The MB3825A is a pulse width modulation (PWM) type 6-channel DC/DC converter IC with synchronous rectification (2-channels) designed for low voltage, high efficiency operation in high precision and high frequency applications, ideal for down conversion.

The MB3825A is an ideal device offering low power consumption, compact size and light weight for products such as self-contained camcorders and digital still cameras.

MB3825A Maximum Ratings

Parameter

Symbol

Conditions

Rating

Unit

Min.

Max.

Power supply voltage

VCC

-

-

17

V

Output current

IO

OUT pin

-

50

mA

Output peak current

IO

OUT pin, Duty 5%

-

200

mA

Power dissipation

PD

Ta +25 °C

-

860*

mW

Storage temperature

Tstg

-

55

+125

°C

*: The packages are mounted on the epoxy board (10 cm ´ 10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                 temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB3825A Features

• Synchronous rectification (channels 1 and 4)
• High efficiency drive with power-on output enhanced by built-in speed-up circuit
• Wide range of operating power supply voltage : 2.5 V to 12 V
• Built-in high-precision reference voltage generator : 1.5 V±1%
• Wide operating oscillator frequency range, high frequency capability : 50 kHz to 800 kHz
• Wide input voltage range (all channels) : 0 V to Vcc - 0.9 V
• Error amplifier output for soft start (channels 1, 2, 4) (All channels may be set for same soft start time regardless
   of duty factor setting.)

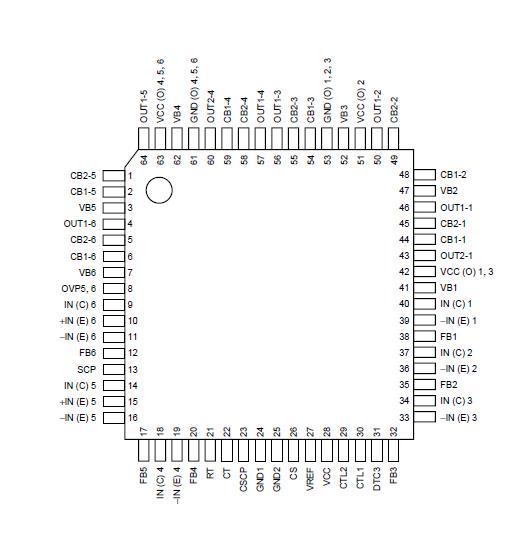

MB3825A Connection Diagram

MB3825A Connection Diagram
