MB39A104

Features:

•Built-in timer-latch overcurrent protection circuit (requiring no current sense resistor)
•Power supply voltage range : 7 V to 19 V
•Reference voltage : 5.0 V ±1 %
•Error amplifier threshold voltage : 1.24 V ±1  %
•High-frequency operation capability : 1.5 MHz (Max)
•Built-in standby function: 0µA (Typ)
•Built-in soft-start circuit independent of loads
•Built-in totem-pole type output for Pch MOS FET

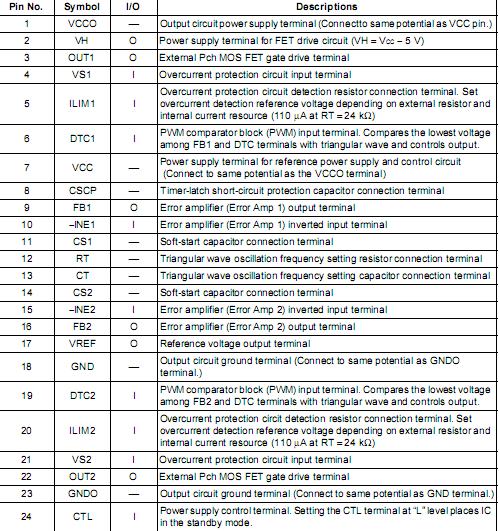

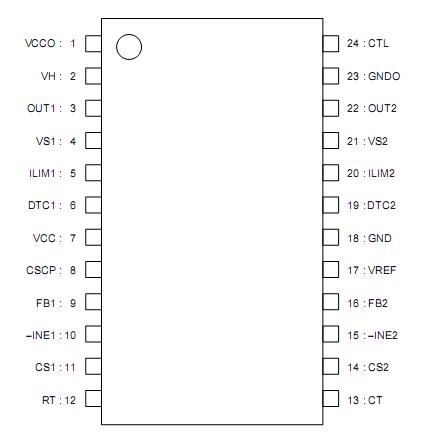

Pinout



Specifications

Parameter	Symbol	Condition	Rating		Unit
			Min	Max
Power supply voltage	VCC	VCC, VCCO terminal	-	20	V
Output current	IO	OUT1, OUT2 terminal	-	60	mA
Output peak current	IOP	Duty 5%(t=1/fOSC*Duty)	-	700	mA
Power dissipation	PD	Ta +25 °C	-	740*	mW
Storage temperature	TSTG	-	-55	+125

Description

The MB39A104 is a 2-channel DC/DC converter IC using pulse width modulation (PWM), incorporating an overcurrent protection circuit (requiring no current sense resistor). This IC is ideal for down conversion.

Operating at high frequency reduces the value of coil.

The MB39A104 is ideal for built-in power supply such as LCD monitors and ADSL.

The MB39A104 is covered by US Patent Number 6,147,477.
