MB39A105

Features: • Power supply voltage range : 1.8 V to 6 V• Reference voltage accuracy : ± 1 %• High-frequency operation capability : 1 MHz (Max)• Built-in standby function: 0 mA (Typ)• Built-in timer-latch short-circuit protection circuit• Built-in short-circuit pro...

product image

MB39A105 Picture
See larger image
SeekIC No. : 004413327 Detail

MB39A105: Features: • Power supply voltage range : 1.8 V to 6 V• Reference voltage accuracy : ± 1 %• High-frequency operation capability : 1 MHz (Max)• Built-in standby function: 0 mA ...

MB39A105 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB39A105
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage range : 1.8 V to 6 V
• Reference voltage accuracy : ± 1 %
• High-frequency operation capability : 1 MHz (Max)
• Built-in standby function: 0 mA (Typ)
• Built-in timer-latch short-circuit protection circuit
• Built-in short-circuit protection detection output function
• Built-in soft-start circuit independent of loads
• Built-in totem-pole type output for Nch MOS FET
• Package : TSSOP-8P (Thickness 1.1 mm Max)


Pinout

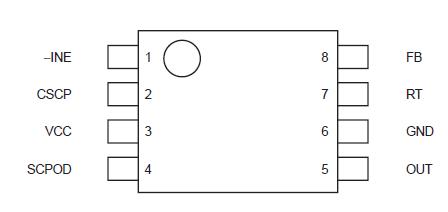

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Min Max
Power-supply voltage VCC VCC terminal - 7 V
Output current IO OUT terminal - 35 mA
Output peak current IOP Duty 5%(t = 1/fOSC*Duty) - 700 mA
Power dissipation PD Ta +25 °C - 490* mW
Storage temperature Tstg - -55 +125 °C


* : The packages are mounted on the epoxy board (10 cm * 10 cm).

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.




Description

The MB39A105 is 1-channel DC/DC converter IC using pulse width modulation (PWM). This IC is ideal for up conversion.

The minimum operating voltage is low (1.8 V) , and the MB39A105 is best for built-in power supply such as LCD monitors. Also the short-circuit protection detection output function prevents input/output short on a chopper type up-converter.

The MB39A105 is covered by US Patent Number 6,147,477.
