MB40528 General Description


The MB40528 is a full parallel comparison (flash) type 8-bit resolution analog-to-digital converter, designed for various video and image processing applications.

The MB40528 has 8-bit resolution 1 channel A/D converter. Input analog data are converted into digital data by the A/D converter in minimum 60 Mega samples per seconds (MSPS).

The analog data is provided in a range of DC +3V to +5V (2Vp-p level) and the output digital data in TTL level.

The MB40528 is fabricated by the Fujitsu's advanced bipolar process and housed in a 20-pin plastic DIP/SOP.

The MB40528 is suitable for various video and image applications.

MB40528 Maximum Ratings

                                                                                                                (GND = 0 V)
Parameter Symbol Condition Rating Unit
Min. Max.
Supply Voltage VCC -0.5 +7.0 V
Analog Input Voltage VINA -0.5 VCC +0.5 V
Digital Input Voltage VIND -0.5 +7.0 V
Storage Temperature Tstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB40528 Features

` Conversion method : Full parallel comparison type
` 8-bit x 1 channel A/D converter
` Max. 60 MHz input clock frequency providing 60 MSPS data conversion rate
` Linearity error : Typical +/-0.15%
` Analog input voltage range : 3V to 5V (2Vp-p level)
` Digital input/output voltage level : TTL level
` On-chip reference voltage generator
` Low power consumption : Typical 400mW
` Single +5V power supply
` Operating temperature range : -20°C to +70°C
` Fujitsu's advanced bipolar process

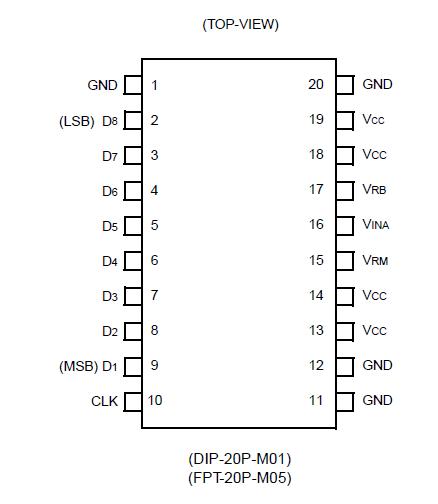

MB40528 Connection Diagram

MB40528 Connection Diagram
