Description: The Fujitsu MB4053 is 6-channel, 8-bit, single-slope A/D converter subsystem designed to be used in a ...
- Table of contents:
MB4053
-
Suppliers
DataSheet
General Description
MB4053 General Description
The Fujitsu MB4053 is 6-channel, 8-bit, single-slope A/D converter subsystem designed to be used in a microprocessor based data control system.
The MB4053 is single monolithic bipolar IC providing a 1 of 8 address decoder, 8-channel analog multiplier, sample and hold, constant current generator, ramp integrator and comparator in a 16-pin package.
This A/D converter subsystems are suitable for a wide range of applications. The resolution required by an application can be obtained by arbitarily selecting a suitable integration time. Also zero offset and full-scale error corrections can be made automatically (auto-zero and auto-calibration) to minimize conversion error.
MB4053 Maximum Ratings
| Parameter | Symbol | Rating | Unit | ||
| Min. | Max. | ||||
| Power supply voltage | VCC | - | 18 | V | |
| Digital input voltage | VIND | 0.5 | +30 | V | |
| Digital output voltage when off | VOH | 0.5 | +18 | V | |
| Analog input voltage | VINA | 0.5 | +30 | V | |
| Output current | IO | - | 10 | mA | |
| Storage temperature | Ceramic | Tstg | 55 | +150 | °C |
| Plastic | -55 | +125 | °C | ||
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB4053 Features
• Microprocessor compatible
• Digital input/output: TTL compatible
• Zero offset and full-scale error correction capability
• Ratiometric conversion capability
• Available in 16-pin DIP and Flat Package
• Compatible with MC 14443 and mA9708 (DIP package)
• Single power supply: +4.75 V to +15 V
• Excellent Iinearity: ±0.2% max. error
• Fast conversion time: 300 ms/ch typ.
• Analog input volgage: 0 V to VCC 2 V (5.25 V max.)
• Power Dissipation: 25 mW typ. at VCC = 5 V
• Digital input/output: TTL compatible
• Zero offset and full-scale error correction capability
• Ratiometric conversion capability
• Available in 16-pin DIP and Flat Package
• Compatible with MC 14443 and mA9708 (DIP package)
• Single power supply: +4.75 V to +15 V
• Excellent Iinearity: ±0.2% max. error
• Fast conversion time: 300 ms/ch typ.
• Analog input volgage: 0 V to VCC 2 V (5.25 V max.)
• Power Dissipation: 25 mW typ. at VCC = 5 V

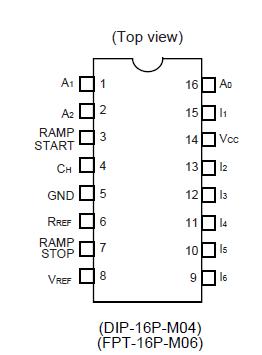

MB4053 Connection Diagram
MB4053
PDF/DataSheet Download
- Datasheet: MB4053
- File Size: 139224 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
