Part Number: MB40760



MFG: FUJ





Description: MB40760 is a low-power consumption, high-speed 10-bit D/A converter.The MB40760 is characteriz...


Urgent Purchase

MB40760 General Description


MB40760 is a low-power consumption, high-speed 10-bit D/A converter.

The MB40760 is characterized by TTL compatible digital inputs, an analog output voltage from 3 to 5V, and a maximum conversion rate of 60 MHz. It provides a reference voltage from a potential divider and band-gap reference, and can also use an external reference voltage.

The MB40760 D/A converter is suitable for high-resolution TVs or VTRs.

MB40760 Maximum Ratings


                                                                    (A.GND = D.GND = 0V, Ta = +25°C)
Parameter Symbol Value Unit
Analog power supply voltage VCCA 0.5 to +7.0 V
Digital power supply voltage VCCD 0.5 to +7.0 V
Power supply voltage difference VCCDVCCA 1.5 v
Digital signal input voltage VID 0.5 to +7.0 V
Storage Temperature Tstg -55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Rating are exceeded. Functional
         operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
         Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

MB40760 Features

• Resolution: 10 bits
• Conversion characteristics:
Maximum conversion rate: 60 MHz (Minimum)
Linearity error: ±0.1% (Maximum)
Differential linearity error. ±0.1% (Maximum)
• Input and output:
   Digital input voltage: TTL levels
   Analog output voltage: 2 VP-P (3V to 5V)
• Reference voltage
   VROUT1: Potential divider circuit (0.6 VCCA)
   VROUT2: Band-gap reference circuit (VCCA-2V)
• Others
   Supply voltage: +5V single power supply
   Power dissipation: 180 mW (Typical value at analog output voltage 2 VP-P)
   140 mW (Typical value at analog output voltage 1 VP-P)

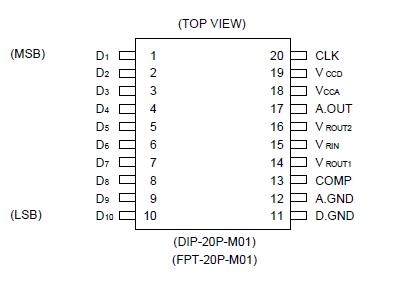

MB40760 Connection Diagram

MB40760 Connection Diagram

MB40760 datasheet

MB40760
PDF/DataSheet Download

  • Datasheet: MB40760
  • File Size: 133106 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
