Part Number: MB40C318V
Description: MB40C318V is a high-speed A/D converter using a fast CMOS technology.
- Table of contents:
MB40C318V
-
Suppliers
DataSheet
General Description
MB40C318V General Description
MB40C318V is a high-speed A/D converter using a fast CMOS technology.
MB40C318V Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Power supply voltage | AVDD, DVDD | 0.3 | +4.0 | V |
| DVDDI | 0.3 | +7.0 | ||
| Input/output voltage | VINA, VRT, VRB, VREFT, VREFB, VR1, VR2, VR3, CE, CKSEL |
0.3 | AVDD+0.3*1 | V |
| DA0 to DA7, DB0 to DB7, CLKOA, CLKOB, DSEL, OE |
0.3 | DVDD+0.3*2 | V | |
| CLK CLKA, CLKB, RESET |
0.3 | DVDDI+0.3*2 | V | |
| Storage temperature | TSTG | 55 | +125 | °C |
*2: Do not exceed +7.0 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB40C318V Features
• Resolution : 8 bit
• Linearity error : ±0.40% (standard)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 5 V (standard: digital input)
3.3 V (standard: A/D converter)
• Clock input voltage range : TTL level (100 MHz max single phase input CLK,
50 MHz max two-phase input CLKA, CLKB)
• Digital input voltage range : TTL level (RESET)
3.3 V CMOS level (CE, OE, CKSEL, DSEL)
• Digital output voltage range : 3.3 V CMOS level compatible
• Analog input voltage range : 0 to 3.0 V (2 Vp-p)
• Analog input capacitance : 22 pF (standard)
• Power dissipation : 210 mW (standard)
• Additional features : Reference voltage generator circuit: VREFT = 3.0 V, VREFB = 1.0 V
High impedance output, power down function
1:2 demultiplex output enable (RESET action enable)
1/2 deviding clock output
Cross sampling at 50 MHz (two-phase CLK) enable (CLKA, CLKB)
• Package : LQFP48 (7 mm×7 mm, lead pitch 0.5 mm)
• Linearity error : ±0.40% (standard)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 5 V (standard: digital input)
3.3 V (standard: A/D converter)
• Clock input voltage range : TTL level (100 MHz max single phase input CLK,
50 MHz max two-phase input CLKA, CLKB)
• Digital input voltage range : TTL level (RESET)
3.3 V CMOS level (CE, OE, CKSEL, DSEL)
• Digital output voltage range : 3.3 V CMOS level compatible
• Analog input voltage range : 0 to 3.0 V (2 Vp-p)
• Analog input capacitance : 22 pF (standard)
• Power dissipation : 210 mW (standard)
• Additional features : Reference voltage generator circuit: VREFT = 3.0 V, VREFB = 1.0 V
High impedance output, power down function
1:2 demultiplex output enable (RESET action enable)
1/2 deviding clock output
Cross sampling at 50 MHz (two-phase CLK) enable (CLKA, CLKB)
• Package : LQFP48 (7 mm×7 mm, lead pitch 0.5 mm)

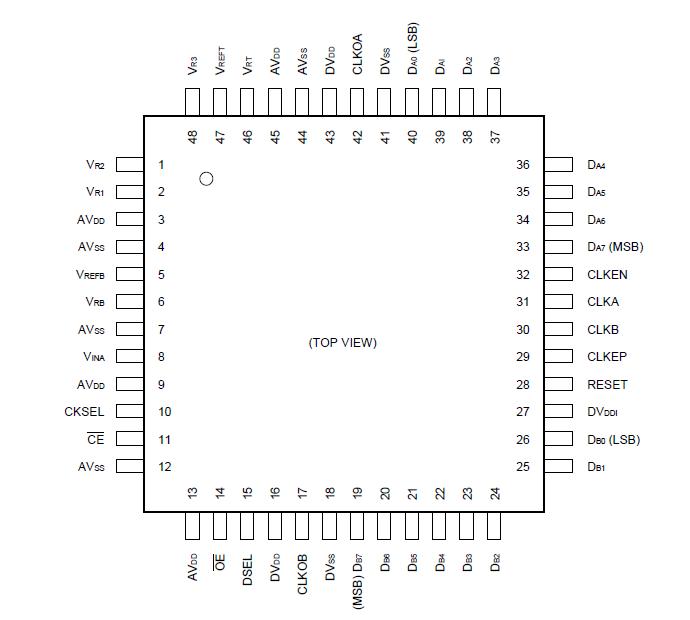

MB40C318V Connection Diagram
MB40C318V
PDF/DataSheet Download
- Datasheet: MB40C318V
- File Size: 175457 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
