General Description
MB40C328 General Description
MB40C328 is a high-speed A/D converter using a fast CMOS technology.
MB40C328 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Power supply voltage | AVDD, DVDD | 0.3 | +4.0 | V |
| Input/output voltage | VINA, VRT, VRB, VREFT, VREFB, VR1, VR2, VR3, CE, CKSEL |
0.3 | AVDD+0.3* | V |
| DA0 to DA7, DB0 to DB7, CLKOA, CLKOB, CLKA, CLKB, CLK, DSEL, OE, RESET |
0.3 | DVDD+0.3* | V | |
| Storage temperature | TSTG | 55 | +125 | °C |
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB40C328 Features
• Resolution : 8 bit
• Linearity error : ±0.40% (standard)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 3.3 V single (standard)
• Digital input/output voltage range : CMOS level compatible
• Analog input voltage range : 0 to 3.0 V (2 Vp-p)
• Analog input capacitance : 22 pF (standard)
• Power dissipation : 210 mW (standard)
• Additional features : Reference voltage generator circuit: VREFT = 3.0 V, VREFB = 1.0 V
High impedance output, power down function
1:2 demultiplex output enable (RESET action enable)
1/2 deviding clock output
Cross sampling at 50 MHz (two-phase CLK) enable (CLKA, CLKB)
• Package : LQFP48 (7 mm ×7 mm, lead pitch 0.5 mm)
• Linearity error : ±0.40% (standard)
• Maximum conversion rate : 100 MSPS (minimum)
• Power supply voltage : 3.3 V single (standard)
• Digital input/output voltage range : CMOS level compatible
• Analog input voltage range : 0 to 3.0 V (2 Vp-p)
• Analog input capacitance : 22 pF (standard)
• Power dissipation : 210 mW (standard)
• Additional features : Reference voltage generator circuit: VREFT = 3.0 V, VREFB = 1.0 V
High impedance output, power down function
1:2 demultiplex output enable (RESET action enable)
1/2 deviding clock output
Cross sampling at 50 MHz (two-phase CLK) enable (CLKA, CLKB)
• Package : LQFP48 (7 mm ×7 mm, lead pitch 0.5 mm)

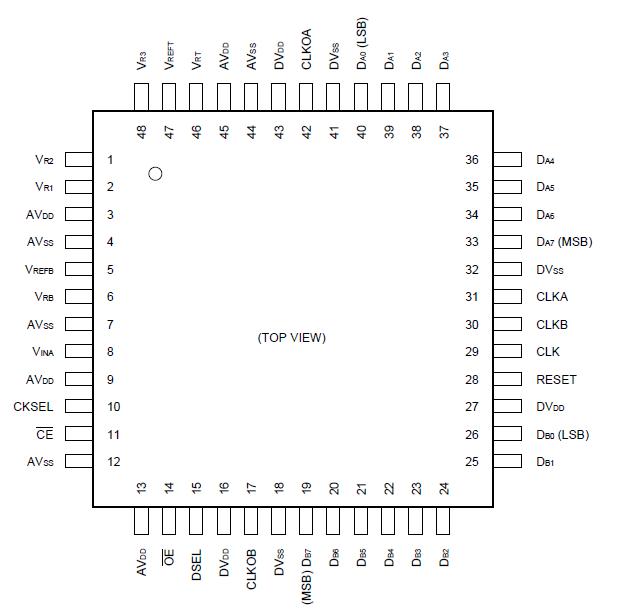

MB40C328 Connection Diagram
MB40C328
