Part Number: MB40C568





Package Cooled: SSOP

D/C: 09+

Description: The MB40C568 is a high-speed A/D converter using high-speed CMOS process technology.


Urgent Purchase

MB40C568 General Description


The MB40C568 is a high-speed A/D converter using high-speed CMOS process technology.

MB40C568 Maximum Ratings

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage AVDD, DVDD 0.3 0.7 V
Input voltage CLK, VINA
VRT, VRB		 0.3 AVDD+0.3 V
Output voltage D1 to D8 0.3 DVDD+0.3 V
Storage temperature Tstg -55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB40C568 Features

• Resolution: 8 bits
• Linearity error: ±0.20% (Typ.)
• Maximum conversion rate: 20 MSPS (Min.)
• Power supply voltage: Analog section +5.0 V
                                       Digital section +3.0 V or +5.0 V
• Digital input voltage range: TTL level
• Digital output voltage range: CMOS level compatible
• Analog input voltage range: 0.5 to 4 V (with 2 Vp-p)
• Analog input capacity: 15 pF (Typ.)
• Power consumption: 50 mW (Typical:@fCLK = 20 MHz, AVDD = 5 V, DVDD = 3 V)
                                    60 mW (Typical:@fCLK = 20 MHz, AVDD = DVDD = 5 V)
• Additional function: Reference voltage generator circuit: VREFT = 3 V, VREFB = 1 V
• Package options: SOP24, SSOP24

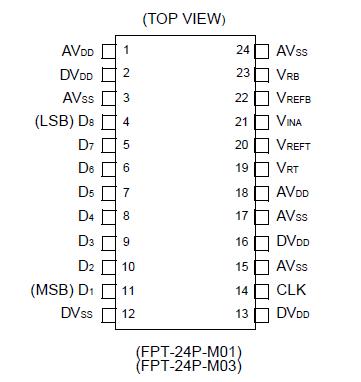

MB40C568 Connection Diagram

MB40C568 Connection Diagram

MB40C568 datasheet

MB40C568
PDF/DataSheet Download

  • Datasheet: MB40C568
  • File Size: 166012 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
